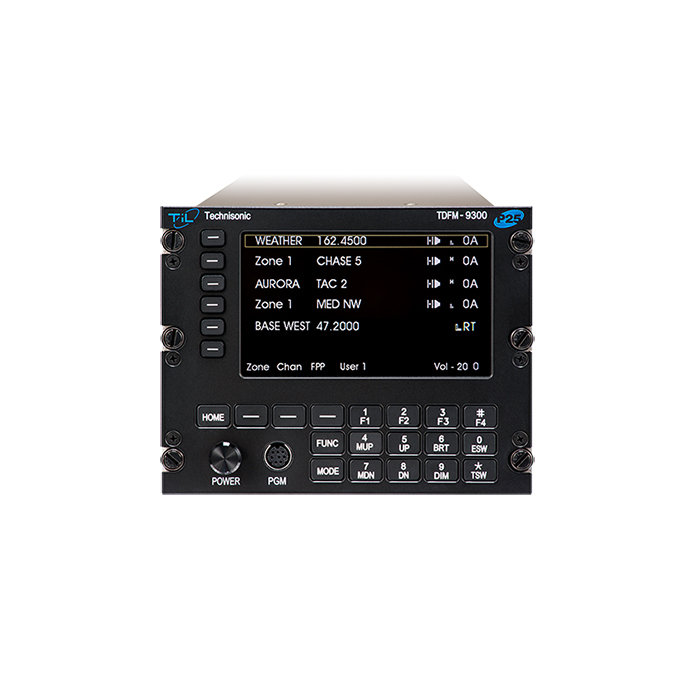

Picture of product TDFM-9300

Part #:

Model: TDFM-9300

OEM:

Technisonic

Desc:

Multi-Band Airborne Transceiver TDFM9300-P93028NV

Part Number :


TDFM-9300

FEATURES
  • The TDFM-9300 is similar to the TDFM-9000 except that, instead of supporting six RF modules, the TDFM-9300 supports up to four P25 All-Band modules, PLUS one analog module.
  • The available analog modules are:VHF Lo (30 to 50 MHz),VHF/AM 118 to 136 MHz (aeronautical band),UHF/AM 225 to 400 MHz (military band)
  • The new All-Band P25 module can support analog/digital operation on the full FM Band spectrum (VHF, UHF, and 7/800) or can be configured to support operation on any mix of all three bands, two bands, or on any single band.
  • Radio modules can be individually configured to include any P25 options such as trunking, encryption, OTAR, etc.
  • Optional P25 Phase 1 (FDMA) and Phase 2 (TDMA) Trunking is also available.
  • Optional Encryption protocols: AES, DES-OFB, DES-XL, DVP, and DVP-XL.
  • Standard ADP Encryption
  • Available Multiple Encryption Keys: 64 Common Key Reference (CKR) or 16 Physical Identifier Reference (PID) keys.
  • Each radio module can store 3000 channels and can be programmed to operate in digital or analog mode on a channel-by-channel basis.
  • Each radio module independently supports SCAN across its entire frequency spectrum.
  • Built-in audio switching allows multiple RF modules in combined or separate transceiver configurations.
  • New User 1, User 2 operator configuration
  • Supports simulcast and cross-band repeat.
  • Dimensions: 4.5” (H), 5.75” (W) and 8.5” (D)


           TDFM-9300 Installation Instructions





SPECIFICATIONS

Dimensions: Approx. (L) 8.0" x (W) 5.75" x (H) 4.5" Weight: ~7.0 Lbs (3.2 Kg)
Operating Temperature: 30° C to +60° C VOLTAGE: 28.0 VDC ± 15%
Altitude range: -1,500 ft to 55,000 feet CURRENT: 500 mA minimum / 7.5A maximum
audio output power: (including sidetone) 65 mW into 600Ωmicro Microphone Inputs: Carbon or Equivalent
Panel Back Lighting: Voltage-28 or 5 Volts AC or DC (selectable), Current- 100 mA  RF Output Power: 1 or 6 Watts (VHF), 1 or 5 Watts (UHF), 1 or 2.5 Watts (764 – 806), 1 or 3 Watts (806 – 870)
VHF Band: 136 to 174 MHz UHF LO Band: 380 to 470 MHz
UHF HI Band: 450 to 520 MHz UHF Band: 380 to 520 MHz
700 / 800 Bands: 764 to 870 MHz FM Hum and noise in dB (wideband): VHF  -48 , UHF -45, 800 -45
Audio Distortion: VHF 1%, UHF 1.0%, 800  1.0% Frequency Stability in ppm: VHF ± 1.0, UHF  ± 1.0, 800 ± 1.5
Modulation Limiting: Wide band ± 5 kHz, Narrow band ± 2.5 kHz Storage Temperature Range: -40° C to +80° C









Part Number: Description:
TDFM9300-P93028NV Multi-Band Airborne Transceiver



111267-2-93-AMM-AMZ-T5-P93647
- Multi-Band Airborne,FM Transceiver (NVG)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
TDFM9300-P93028NV
- Multi-Band Airborne Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
