TFM-138() 921012-1

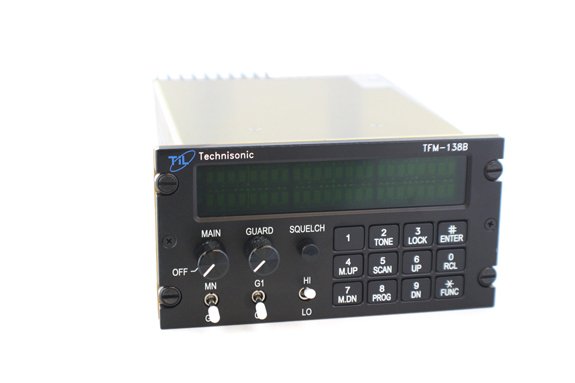

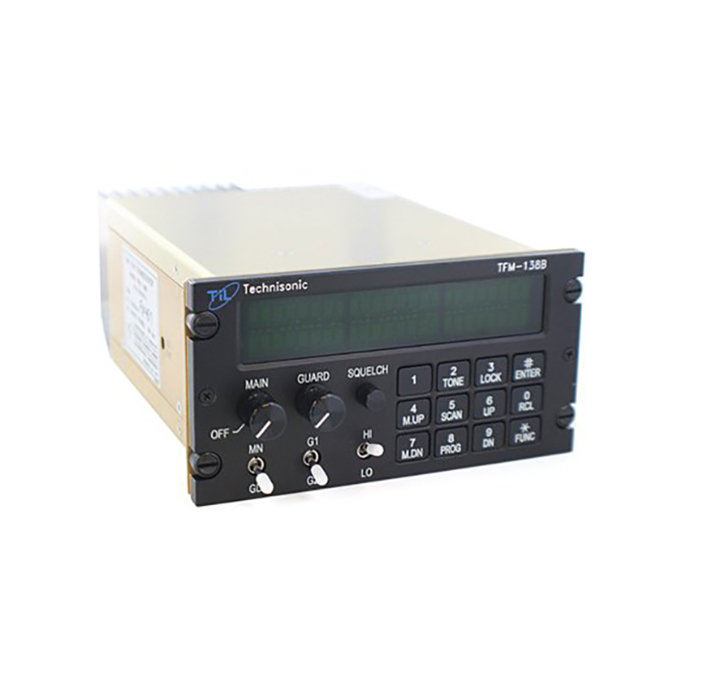

Technisonic - VHF FM Transceiver, 138 - 174 MHz
Part Number :

View Promo


TFM-138B
FEATURES
  • Airborne VHF FM Transceiver
  • 138-174 MHz in 2.5 kHz steps
  • 12.5 kHz (narrow band) or 25 kHz (wide band) channel spacing
  • Two channel synthesized guard receiver
  • 120 channels of preset memory
  • 3" high, dzus mount, self-contained transceiver weighing 3 lbs
  • FCC and IC (Industry Canada) approved
  • Airworthiness approved
  • USFS approved



SPECIFICATIONS
Frequency Range: 138.000 MHz to 174.000 MHz  Tuning Increments:  2.5kHz
Operating Mode: F3E simplex or semi-duplex Channel Spacing:  12.5 kHz, 25 kHz or 30 kHz as per applicable FCC and DOC spec
Memory Positions: 120 Channels Physical Dimensions: Approx. 8" x 3" x 5.75"
Weight: 3.1 lbs Temperature Range:  -45°C to +70°C
Altitude: 50,000 ft  Power Requirement: 28 VDC Receiver - 600 ma 1 Watt transmit - 1.3 amps 10 Watts transmit - 2 amps
Environmental: RTCA DO-160C (B2, D1)XXX(B,M,N)XXXXXXZBBXXXZXXX Certification:  FCC and DOC Type Approved
Guard Receiver:  2 Channel Synthesized  CTCSS Squelch Capability:  Encodes/Decodes all 63 Available Tones
DPL/DCS Capability:  Encodes/Decodes all Available Digital Sq. Codes  DTMF Encoder:  All standard DTMF tones Available
Audio Output:  500 mw into 600 Ohms  Speaker Output:  2.5 Watts into 4 Ohms
Back Lighting:  28V (standard) or 5V (specify)  Display:  Green (standard), red (optional)
Audio Distortion:  Less than 5%  Transmitter RF Power Output:  1 Watt or 10 Watts
Frequency Stability:  ± 0.0005%
Part Number Airborne VHF FM Transceiver Description:
921012-1 (option B) Green Display and 28V back lighting
921012-1 (5V)(option B) Green Display and 5V back lighting
921012-2 (option B) Red Display and 28V back lighting
921012-2 (5V) (option B) Red Display and 5V back lighting



921012-1
- VHF FM Transceiver, 138 - 174 MHz
Price Condition Delivery
$9,395.00 NEW OUTRIGHT CALL OR RFQ
$4,950.00 SV OUTRIGHT IN STOCK
$1,550.00 SV EXCHANGE IN STOCK

SEA Repair Capabilities: Yes

921012-1 (5V)
- VHF FM Transceiver, 138 - 174 MHz
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: Yes

921012-2
- Transceiver, 138 - 174 MHz
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: Yes

921012-2 (5V)
- Transceiver, 138 - 174 MHz
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: Yes
