product image

Part #:

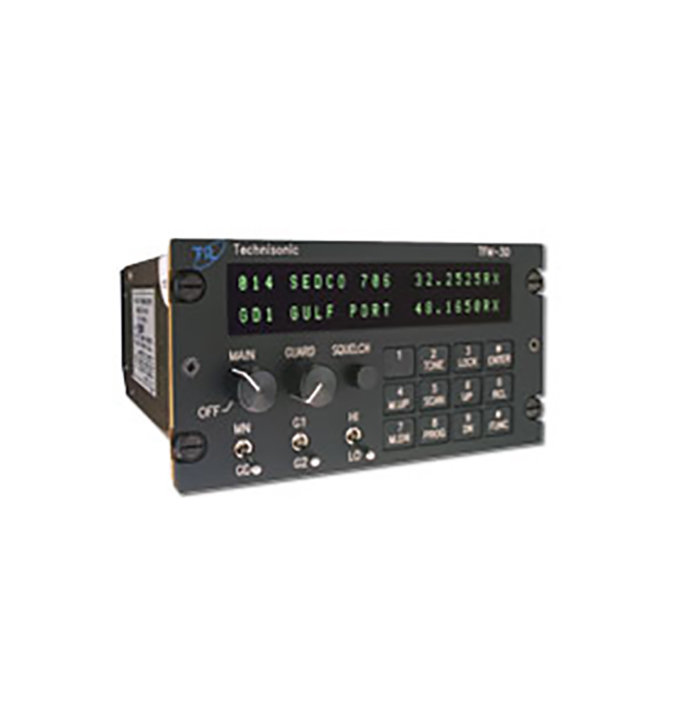

Model: TFM-30

OEM:

Technisonic

Desc:

FM Low Band Transceiver

Part Number :





TMF-30



FEATURES

  • 120 preset memory positions each of which is capable of storing a receive frequency
  • Transmit frequency
  • Separate CTCSS tone and/or DPL/DCS (digitally coded squelch)
  • Alpha-numeric identifier for each channel
  • Operates in both 12.5 KHz (narrow band) and 25 KHz (wide band) mode



SPECIFICATIONS

Frequency Range: 30.00 MHz to 50,000 MHz weight: 3.1 lbs. (1.4 Kg)
Turning Increments: 2.5 KHz Temperature Range: -45°C to +70°C
Display Color: Green (standard) or red (specify) Back Lighting: 28VDC or 5VAC (specify when ordering)
Altitude: 50,000' Power Requirement: 28 VDC (14VDC with optional converter) Receive–700 mA; 1 watt transmit–1.3 AMPS; 10 watts transmit–2.0 amps
Part Number: Description:
961082-1 FM Low Band Transceiver
961082-1 (5V) FM Low Band Transceiver
961082-2 FM Low Band Transceiver
961082-2 (5V) FM Low Band Transceiver





961082-1
- FM Low Band Transceiver
Price Condition Status
$11,225.00 NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
961082-1 (5V)
- Transceiver, 30 - 50 MHz
Price Condition Status
$8,800.00 NEW OUTRIGHT REQUEST LEAD TIME
961082-2
- Transceiver, 30 - 50 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
961082-2 (5V)
- Transceiver, 30 - 50 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
