Part #:

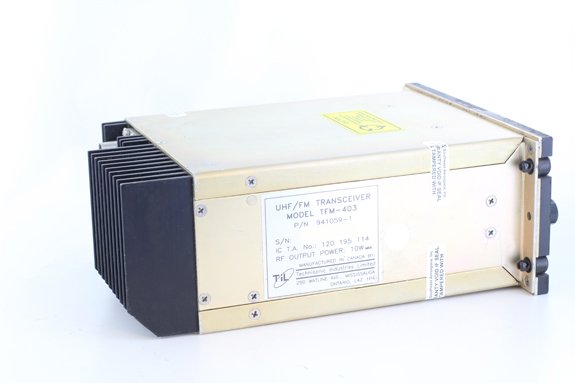

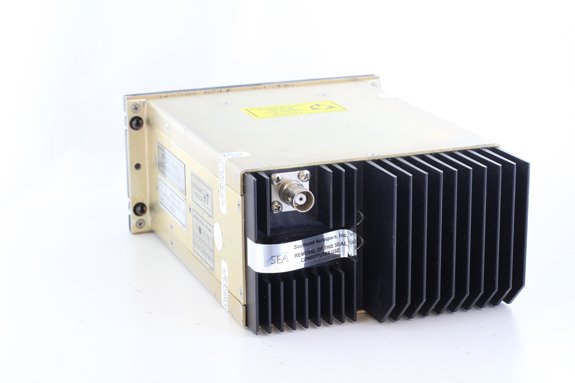

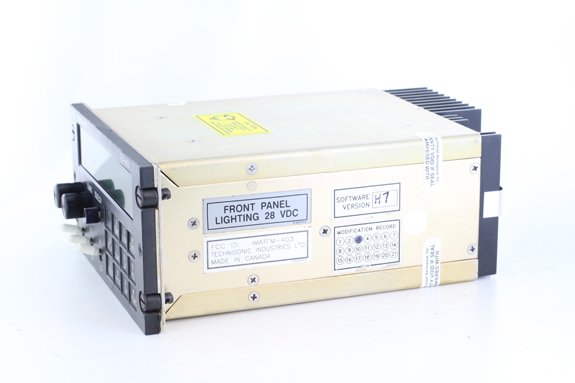

Model: TFM-403

OEM:

Technisonic

Desc:

UHF/FM Transceiver, 403 - 512 MHz

Part Number :





TFM-403



FEATURES

  • Two line LED matrix display
  • Covers from 403.0000 MHz to 512.0000 MHz in 2.5 KHz steps
  • 12 button keypad
  • Direct Entry simplex mode
  • Programmable two channel guard receiver
  • DTMF encoder
  • Separate CTCSS and/or a DPL/DCS (Digitally Coded Squelch)
  • 90 second transmitter time out
  • Direct/repeat function for simplex "talkaround"
  • Keyboard lock out feature





SPECIFICATIONS

Physical dimensions: 8.0 x 3.0 x 5.75 inches Weight: 3.1 Lbs. (1.4 Kg)
Altitude: 50,000 ft. Temperature range: -45 deg C to +70 deg C
Humidity: 95% Non-condensing Power requirement 28 VDC,Receive - 700 mA,1 Watt transmit - 1.3 amps,10 Watts transmit - 2.0 Amps
Frequency range: 403.000 MHz to 512.000 MHz Operating mode: F3E simplex or semi-duplex
Display color: Green (standard) or Red (specify) Back lighting: 28 VDC or 5 VAC (specify when ordering))
Power output 1 Watt or 10 Watts, front panel selectable Output impedance: 50 ohms
Part Number: Description:
 941059-1 UHF/FM Transceiver, 403 - 512 MHz
 941059-1 (5V) UHF/FM Transceiver, 403 - 512 MHz
 941059-2 UHF/FM Transceiver, 403 - 512 MHz
941059-2 (5V) UHF/FM Transceiver, 403 - 512 MHz



941059-1
- UHF/FM Transceiver, 403 - 512 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
941059-1 (5V)
- Transceiver, 403 - 512 MHz
Price Condition Status
$8,300.00 NEW OUTRIGHT REQUEST LEAD TIME
941059-2
- Transceiver, 403 - 512 MHz
Price Condition Status
$8,300.00 NEW OUTRIGHT REQUEST LEAD TIME
941059-2 (5V)
- Transceiver, 403 - 512 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
