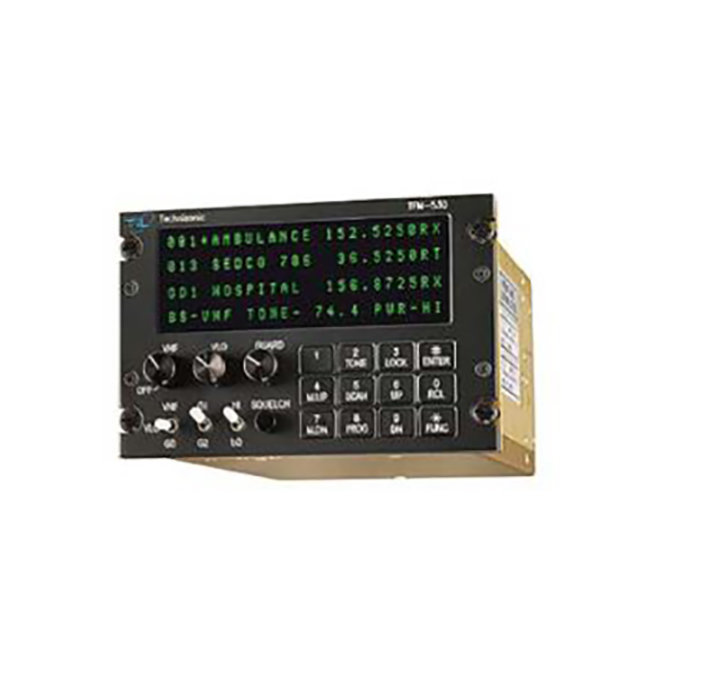

Picture of product TFM-530

Part #:

Model: TFM-530

OEM:

Technisonic

Desc:

VHF LO FM Transceiver Airborne

Part Number :





TFM-530



FEATURES

  • Can be installed as a single transceiver operating in VHF High or VHF Low mode
  • FM1 and FM2 enabling simultaneous operation on both bands
  • Operates as a cross band repeater
  • 400 preset memory positions (200 VHF High and 200 VHF Low) each capable of storing a receive frequency





SPECIFICATIONS

Physical dimensions: 8.0 in x 3.75 in x 5.75 in (Overall TFM-530 dual band transceiver) Weight: 5.1 Lbs (2.4 Kg)
Altitude: 50,000 ft. Temperature range: -45oC to +700 C
Display: Green (standard), red (optional) Power requirement 28 VDC±15%
Frequency range: Hi (138.000 MHz to 174.000 MHz) Lo (30.000 MHz to 50.000 MHz) Operating mode: F3E simplex or semi-duplex
Channel spacing: 12.5 KHz, 25 kHz or 30 kHz as per applicable FCC and DOC spec.  Output impedance: 50 Ohms
Speaker output: 2.5 Watts into 4 ohms RF power output: 1 Watt or 10 Watts
Part Number: Description:
 031216-1  Airborne VHF Hi / LO FM Band Transceiver
 031216-1 (5V) Airborne VHF Hi / LO FM Band Transceiver
 031216-2 Airborne VHF Hi / LO FM Band Transceiver
031216-2 (5V) Airborne VHF Hi / LO FM Band Transceiver
031216-3 Airborne VHF Hi / LO FM Band Transceiver
 031216-3 (5V) Airborne VHF Hi / LO FM Band Transceiver
031216-4 Airborne VHF Hi / LO FM Band Transceiver
 031216-4 (5V) Airborne VHF Hi / LO FM Band Transceiver



031216-1
- VHF LO FM Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
031216-1 (5V)
- Transceiver, 138 - 174, 30 - 50 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
031216-2
- Transceiver, 138 - 174, 30 - 50 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
031216-2 (5V)
- Transceiver, 138 - 174, 30 - 50 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
031216-3
- Transceiver, 138 - 174, 30 - 50 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
031216-3 (5V)
- Transceiver, 138 - 174, 30 - 50 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
031216-4
- Transceiver, 138 -174, 30 - 50 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
031216-4 (5V)
- Transceiver, 138 - 174, 30 - 50 MHz
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
