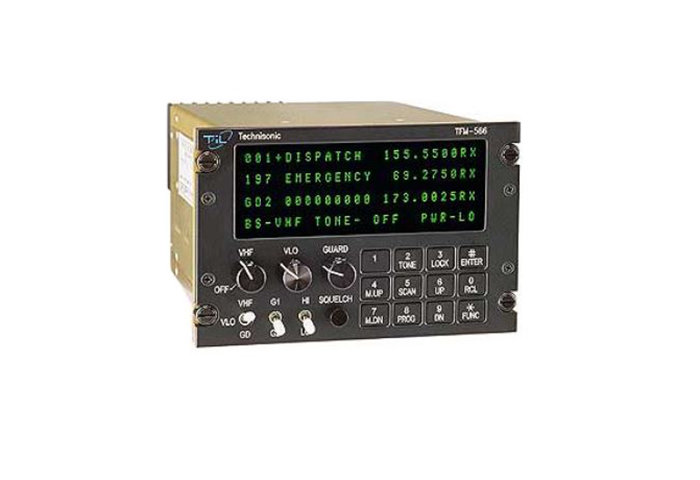

Picture of product TFM-566

Part #:

Model: TFM-566

OEM:

Technisonic

Part Number :



TFM-566



FEATURES

  • TTFM-566 is a dual band , frequency agile airborne FM
  • Designed to provide radio communications on every available channel in the VHF General Service Hi Band (138 to 174 MHz)
  • Enable communications in the International VHF Lo Band (66 to 88 MHz)
  • Tunes in 2.5 kHz steps providing both 12.5 kHz (narrow band) or 25.0 kHz (wide band) operation in both bands
  • 2 channel, synthesized VHF high band guard receiver
  • Operates as a single radio (one band at a time)
  • Cross-band repeater and offers 400 memory positions (200 per band)
  • All data and software control functions are via the front panel 12-button keypad
  • Operating frequency, alpha-numeric identifier and other related data are presented on a 96-character
  • Four-line LED matrix display



SPECIFICATIONS

power requirements: 28 VDC ±15%, Receive-1.2 amps max, 1 Watts transmitt-2.2 amps max, 10 Watts transmitt-3.4 amps max weight: 5.1 lbs (2.4 Kgs.)
Dimensions: 8.0" W x 3.75" H x 5.75" D temperature range: -45°C to +70°C
altitude: 50,000 ft environmental: RTCA DO-160 Env Cat, (B2, D1) XXX(B,M,N)XXXXXXAABBXXXZXXX
memory position: 200 Channels tunning increments: 2.5 KHz
frequency range: (VHF Hi Module)138.000 MHz to 174.000 Mhz, (VHF Lo Module) 66.000 MHz to 88.000 Mhz Display: Green (Standard), red (otional)
audio output: 500 mW into 600 Ohms speaker output: 2.5 Watts into 4 ohms
Part Number: Description:
031217-1 Dual Band, Frequency FM Aransceiver
031217-1 (5V) Dual Band, Frequency FM Aransceiver (5V)
031217-3 Dual Band, Frequency FM Aransceiver
031217-3 (5V) Dual Band, Frequency FM Aransceiver (5V)



031217-1
- VHF/UHF FM Transceiver (Green, 28V Lighting)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
031217-1 (5V)
- VHF/UHF FM Transceiver (Green, 5V Lighting)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
031217-3
- VHF/UHF FM Transceiver (Red, 28V Lighting)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
031217-3 (5V)
- VHF/UHF FM Transceiver (Red, 5V Lighting)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
