Model: AD32

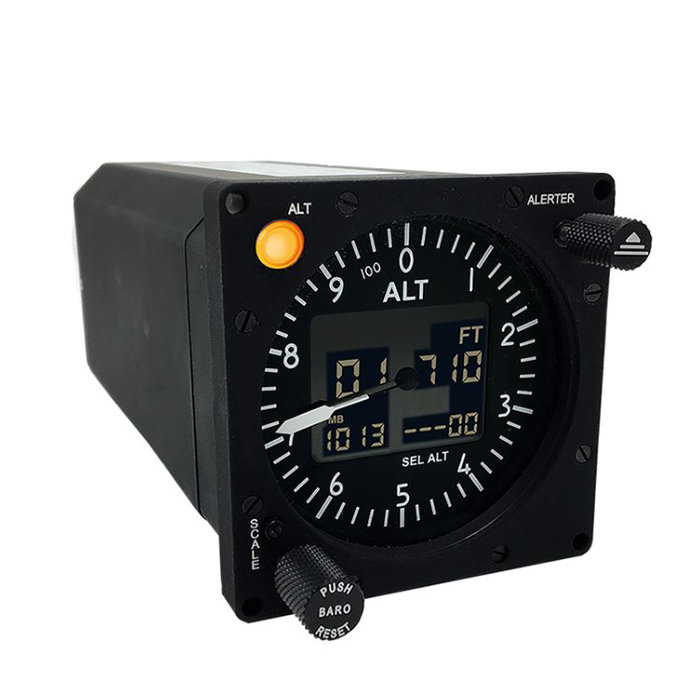

Thommen - Air Data Display
Part Number :
Logo Thommen Aircraft Equipment
AD32

FEATURES
  • Air Data Computer
  • Designed for 28VDC with low power consumption of less than 8 Watts
  • Lightweight at 2.75 lbs
  • Measures barometric altitude, airspeed and temperature in atmosphere
  • Integrated solid-state pressure sensors for static and pitot pressure
  • RVSM compliant
  • Provides up to 2 x 16 SSEC curves
  • Exceeds FAA TSO and accuracy requirements
  • Communicates via its ARINC429 interface
  • Two ARINC 429 transmit channels and two receive channels
  • Integrated altitude alerter
  • Baro setting knob has a push-to-reset function
  • Meets requirements for multiple platforms for TAWS, ACAS/TCAS, EGPWS, or FMS systems
  • Supports the Air Data for enhanced safety infrastructure capabilities for Transponders and an ICAO encoded altitude output is available as an option
  • High contrast LCD, stepper motor driven pointer
  • Designed to be modular
  • Extensive built-in-test guarantees safe operation
  • Can be configured for different applications
  • Easy hosting capabilities by supplying data to next generation equipment and display of altitude in feet or meters, without altering the system architecture
  • Additional versions available: AD32 RVSM, AD32 DEA80

SPECIFICATIONS
features:

Solid State Pressure Sensors
RVSM Compliant
Static Source Error Correction, 2 x 16 Curves
Integrated Altitude Alerter (Optional)
Standby/Normal Operation (Optional)
English/metric scale setting
Baro Push-to-Reset function
Push-to-Test and continuous Built-in-Test
BIT Failure memory
Display with LCD/stepper motor driven pointer
ARINC 408, 3ATI, with IMI ring pointers
RS232 Maintenance Interface

Signal inputs:

Primary Power 28 VDC
Emergency Power 28VDC
Lighting Power 28VDC (Optional 5VDC)
Alert Lamp Power 28VDC (Optional 5VDC)
ARINC 429 Serial Data Bus, 2 Receive Channels
TAT Probe 500 Ohm (Optional 100 Ohm @ 0°C)

Signal outputs: Encoded Altitude ICAO Per TSO C-88a
Visual/Aural Alert Relais Outputs
Warning Flag Valid GND/28 VDC
Optional Baro Potentiometer Output
ARINC 429 Serial Data Bus, 2 Transmit Channels
altitude scale error: -1,000 to 10,000 feet ±25 feet
10,000 to 20,000 feet ±35 feet
20,000 to 30,000 feet ±50 feet
30,000 to 40,000 feet ±75 feet
40,000 to 50,000 feet ±100 feet
qualifications: FAA TSO-C10b/TSO-C88a/TSO-C106
RTCA/DO-178B Level A, RTCA/DO-160D
temperature: Operating: -20°C to 70°C
Storage: -55°C to 85°C
Reliability: MTBF 21,700 hrs. (Acc. MIL-HDBK-217F)





AD32.32.53F.05.1.RB
- Electronic Altimeter w/ DADC
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
AD32.32.53F.28.1.RE
- Electronic Altimeter w/ DADC
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
AD32.XX.XXX.XX.X.XX
- Electronic Altimeter w/ DADC
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
