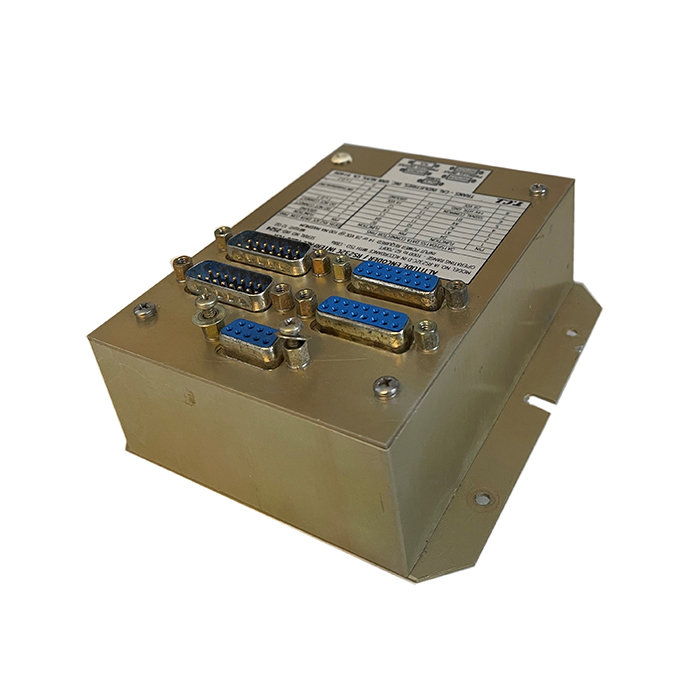

Picture of product IARS232CD

Part #: IA-RS232C-D

Model: IARS232CD

OEM:

Trans-Cal

Desc:

Interface Adapter w/ Data Output/Input

Part Number :



IA-RS232C-D



FEATURES

  • Solid-state microprocessor-based device that converts parallel data received from pressure altitude reporting equipment into serialized data
  • The data conforms to the TIA/EIA RS232C standard, as well as repeating the ICAO Altitude Code on an output port
  • 2 parallel digital altitude output ports
  • 2 serial altitude data output ports
  • 2 altitude encoder data input ports



SPECIFICATIONS
Dimensions: 4.55" L x 2.07" H x 4.30" W Weight: 12 oz.
Operating Voltage: +12 to 30 VDC Operating Current: 0.090 Amps (90mA)
Operating Temperature: -20 to +85C Storage Temperature: -55 to +85C (non-operating)
Accuracy: Repeats the data from the source with 100% accuracy. Operating Altitude: -1000 to +62700 feet









Part Number: Description:
IA-RS232C-D   Interface Adapter w/ Data Output/Input







Serial # IAD-2524
Condition AR
Mods -
Tag Date -
Shop -
Warranty -
IA-RS232C-D
- Interface Adapter w/ Data Output/Input
Price Condition Status
REQUEST AR OUTRIGHT 1 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

"As Removed" or condition "AR" parts are in the same condition as they were removed from an aircraft. The reasons for removal include aircraft upgrades, teardowns, or certain types of incidents. In most cases, AR parts have not been inspected or tested. They do not include airworthiness certification such as FAA Form 8130 or EASA Form 1. Southeast Aerospace encourages avionics in this condition to be tested and recertified before using in an aircraft.
