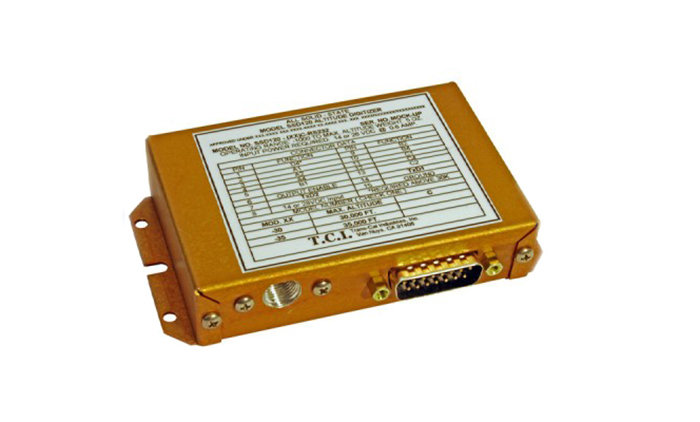

Picture of product SSD120-35C

Part #: SSD120-35C-RS232

Model: SSD120-35C

OEM:

Trans-Cal

Desc:

Altitude Encoder

Part Number :


 SSD120-35C

FEATURES

  • 1/8-27NPT Static Port Inlet
  • One ICAO pressure altitude gray code output
  • Two RS232 serial altitude data outputs
  • Comes standard with 10 foot serial resolution
  • Power and data I/O lines provide on industry standard D-Subminiature Connector
  • Tested and conforming to MIL-STD-704E and RTCA DO-160E



SPECIFICATIONS

Operating Temperature Range: -20º C to +70º C Operating Voltage:  +10 to +33Vdc
Operating Current: +12Vdc @220mA / +28Vdc @270mA Weight: 4.3 oz.
FAA: TSO-C88a and ETSO-C88a Approved
Part Number: Description:
SSD120-35C-RS232 Altitude Encoder


SSD120-35C-RS232
- Altitude Encoder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
