Part #:
Model: TY92
NSN: |
|
OEM: |
Trig Avionics |
Desc: |
VHF Radio System, 28V |
Part Number :
Select part number above to view pricing and availability.
| Price | Condition | Status | Part Info | |
|---|---|---|---|---|
| RFQ | NEW OUTRIGHT | RFQ |
|
* Price & Availability valid as of 04/20/21 20:51:32 EDT *
| Price | Condition | Status | Part Info | |
|---|---|---|---|---|
| $2,995.00 | NEW OUTRIGHT | RFQ |
|
* Price & Availability valid as of 04/20/21 20:51:32 EDT *

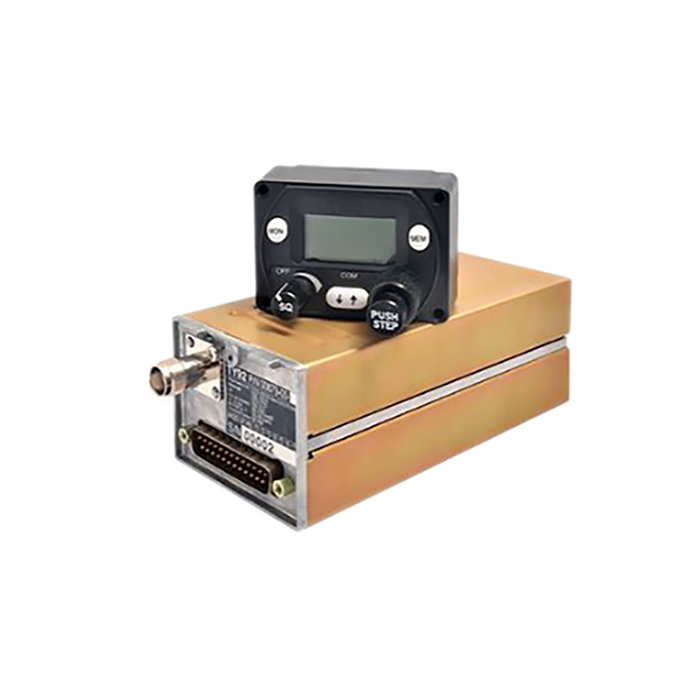

TY92
FEATURES
- VHF Radio, powered by 22 – 33 volts and has an output of 16 watts
- Can be set at 25 kHz and 8.33 kHz
- Receiver - Class C, Class E / Transmitter - Class 3, Class 5
- 16 Watt power output
- Compact and light weight
- Take up minimal space and weight
- Dual watch and two place intercom
- Operation is simple, rapid frequency selection
- Nine programmable memories
- Can be battery operated
- Full certified
- Compliment Trig's TT21 and TT22 Mode S Transponders
- Control head and separate radio hardware unit, can be purchased together or separate (see part number chart below)
- Flexible installation options due to 2 piece design
- Can be mounted in a standard 2 1/4" hole or even smaller compact mount
- Once fitted, the depth of the radio control head is less than 1 1/2" deep
- Includes built in speaker amplifier, allowing headset free operation option
- Crisp display, visible in all lighting conditions
- TY92 is a higher powered model, ideal for longer range transmission and for aircraft that have a 28V power supply (See TY91 for a lower powered option) Additional Information: Click Here to download the TY91/TY92 Installation Manual
SPECIFICATIONS
| Type: | Receiver - Class C, Class E; Transmitter - Class 3, Class 5 | Certification: | ETSO-2C169a, ETSO-2C128, TSO-C169a, TSO-C128a |
| Compliance: | ED-23C, ED-67, DO-186B, DO-178B Level B, DO-160F, DO-254 Level C | Supply Voltage: | 22-33 Vdc |
| Typical Current Consumption: | 130 mA receive 2.5A transmit @ 28V | Nom.Transmitter Power: | 16 W |
| Operating Temp: | -40 to +70°C Radio; -20 to +70°C Controller | Cooling: | No fan required |
| Weight: | 1.01 lbs | Dimensions (Controller): | 1.73"H x 2.48"W x 1.37"D w/out connector |
| Dimensions (Radio): | 1.88" H x 2.59"W x 6.29"L | Connector: | D-Type connector fitted |
| Part Number | VHF Radio Description: |
|---|---|
| 01080-00 | Complete (Controller & Remote Unit) |
| 00881-00 | Remote Unit Only |
| 00857-00 | TC90 Controller (used in p/n 01079-00) |
00881-00
- VHF Radio Remote Unit, 28V
| Price | Condition | Status |
|---|---|---|
| RFQ | NEW OUTRIGHT | RFQ |
01080-00
- VHF Radio System, 28V
NSN: 5325-01-318-1919
| Price | Condition | Status |
|---|---|---|
| $2,995.00 | NEW OUTRIGHT | RFQ |
