Part #: 01229-0001

Model: TY97

Trig Avionics - Slimline VHF Radio - 16 Watt

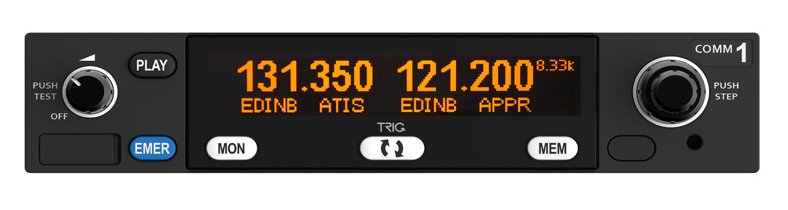

product image
Part Number :


TY97
FEATURES
  • VHF Radio – 16 Watt output
  • High performance
  • Slim-line – only 33mm high
  • Bright, clear display / simple user interface
  • Unique ‘Push Step’ for faster tuning
  • Dual Watch – monitor two frequencies at the same time
  • 8.33 and 25 kHz – ETSO and TSO approval (pending)
  • Stereo music / two place intercom
  • ‘Say Again’ feature – allows playback of last transmission
  • Emergency button
  • Configurable airfield database – holds over 200 frequencies
  • USB port on facia – upload frequency list (CSV file)
  • No cooling fans or external cooling required
  • Ideal retro-fit for legacy radios
  • Designed and manufactured in the U.K.
SPECIFICATIONS
Type: Certified - 8.33 kHz & 25 kHz Supply Voltage: 22 - 33V
Certification: ETSO 2C128, 2C169a, TSO-C128a, TSO-C169a Compliance: ED-23C, ED-67, DO-186B, DO-207, DO-178B Level B, DO-254 Level C, DO-160G
Typical current consumption: @ 28V - 140mA Nominal Transmitter Power: 16W
Operating Temp: -20 to +55°C Cooling: No fan required
Weight: 2.09 lbs front panel Dimensions: 1.3" H x 6.25" W
installed depth in tray: 9.05"
Part Number VHF Radio Description:
01229-0001 As described above



01229-0001
- Slimline VHF Radio Complete System
Price Condition Status
$2,934.00 NEW OUTRIGHT REQUEST
