Part #: 01790-00-01

Model: TY97A

OEM:

Trig Avionics

Desc:

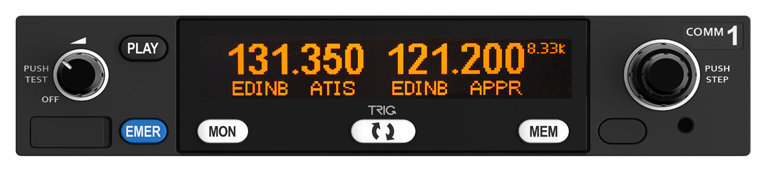

Panel Mount VHF Comm Radio, 16W

Part Number :


TY97A
FEATURES
  • Slim-line – only 33mm high
  • 16 watt radio designed for general aviation and light sport applications
  • Bright, clear display / simple user interface
  • Unique ‘Push Step’ for faster tuning
  • Stereo music / two place intercom
  • Dual Watch – monitor two frequencies at the same time
  • ‘Say Again’ feature – allows playback of last transmission
  • Emergency button
  • Configurable airfield database – holds over 200 frequencies
  • USB port on facia – upload frequency database (CSV file)
  • No cooling fans or external cooling required
  • Ideal retro-fit for legacy radios
  • Designed and manufactured in the U.K.
SPECIFICATIONS
Dimensions: 1.3" H x 6.26" W x 10.63" L
9.05" Long (Installed depth in tray)
Weight: 2.09 lbs
Operating temperature: -20°C to +55°C Cooling: No fan required
Nominal Transmitter power: 16 Watt Typical Current Consumption in receive mode: at 28V - 250 mA
supply voltage: 22 - 33 Vdc compliance: ED-23C, ED-67, DO-186B, DO-178B Level B, DO-160G, DO-254 Level C
certification: ETSO 2C128, 2C169a, TSO-C128a, TSO-C169a type: Certified - 25 kHz
Part Number VHF Radio Description:
01790-0001 See description above



01790-00-01
- Panel Mount VHF Comm Radio, 16W
Price Condition Status
$2,395.00 NEW OUTRIGHT REQUEST LEAD TIME
