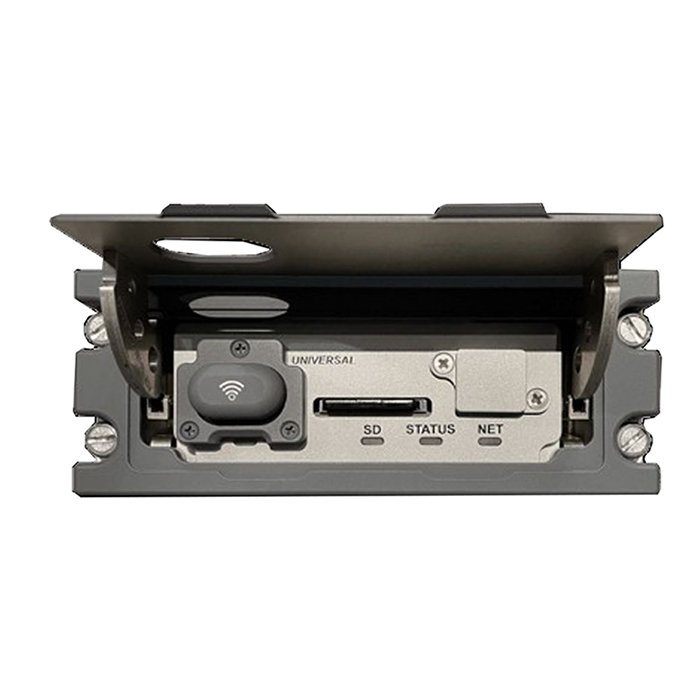

Picture of product SSDTU+
Part #: 1410-00-2
Model: SSDTU+
Desc: DZUS-Mount Solid State DTU (Black)
OEM: Universal Avionics
Part Number :
Universal Avionics Systems Corporation

.

FEATURES

  • The Solid-State Data Transfer Unit Plus (SSDTU+) enables the Connected Avionics Solution
  • Secure, low-power cockpit Wi-Fi access point enables UA FlightPartner Apps Tablet interactions in all phases of flight
  • SSDTU+ is a direct upgrade to Universal SSDTUs currently in service
  • Enable two-way exchanges of Flight Plan related data with Universal WAAS FMS (UNS-1w)
  • Real-time Aircraft Data Streaming support for moving map apps including aircraft position, flight path, current waypoint and fuel data
  • Maintaining all related functions including centralized uploading/downloading functions with up to eight Universal Avionics Line Replaceable Units (LRU)
  • Seamless database delivery when used in conjunction with the UA FlightPartner and FlightReview Apps
  • SD card support for manual download and upload maintaining SSDTU functions





SPECIFICATIONS

Dimensions: Bezel Size: 2.25 in. H x 5.75 in. W Weight: 2.4 lb
mounting: DZUS hard wired: to NCU
faceplate color: Gray or Black Data Format: Digital
Data Input: SD Card or USB Flash Memory, Bi-directional data transfer via 10/100 Mb Ethernet Power: 27.5 Vdc nominal, 28 Watts nomial
FAA TSO/ETSO: TSO C109, ETSO C109




®
®



Part Number: Description:
 1410-00-2 DZUS-Mount Solid State DTU (Black)







1410-00-2
- DZUS-Mount Solid State DTU (Black)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
