Part #: 1408-00-2

Model: SSDTU

OEM:

Universal Avionics

Desc:

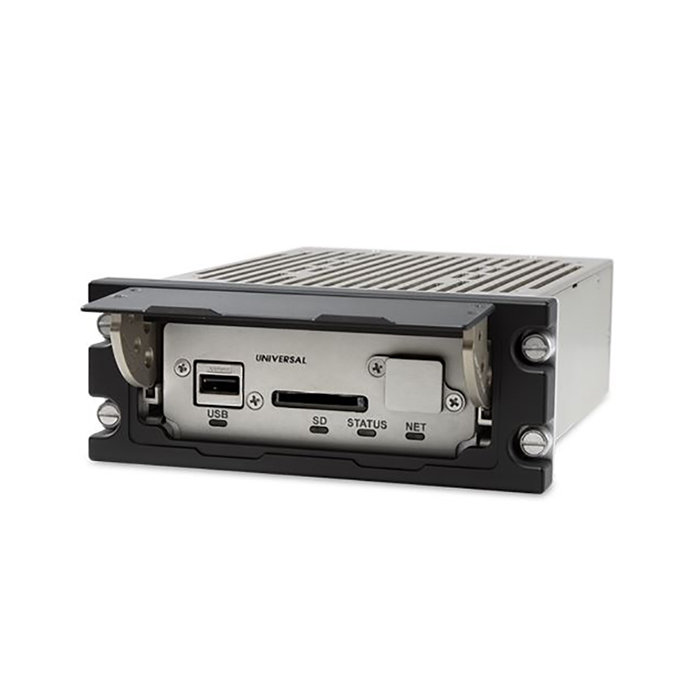

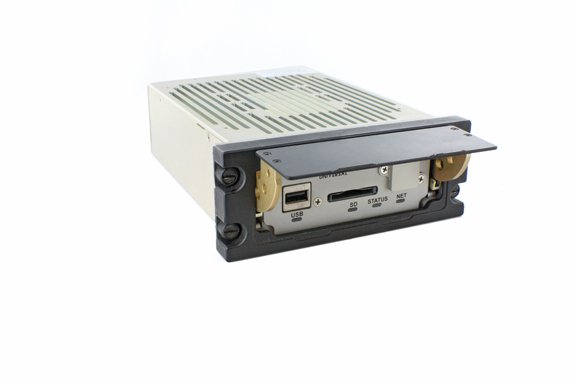

Solid State DTU (Mounted)

Part Number :
Universal Avionics Systems Corporation


SSDTU

FEATURES

  • Solid-State Data Transfer Unit (SSDTU)
  • Interface with Line Replaceable Units (LRU)
  • Features flash memory technology that adds speed and ease of use to data transfers
  • Replaces floppy and ZIP disks of the DTU and DTU-100
  • Replaces CD/DVD-ROM of the Accessible Data Unit (ADU)
  • All-in-one unit facilitates centralized uploading/downloading for FMS, TAWS & Vision-1® databases and for Application Server Unit (ASU) charts, checklists & E-DOCS
  • Supports USB and SD mass storage devices, high-speed USB and SD media ports directly in the faceplate

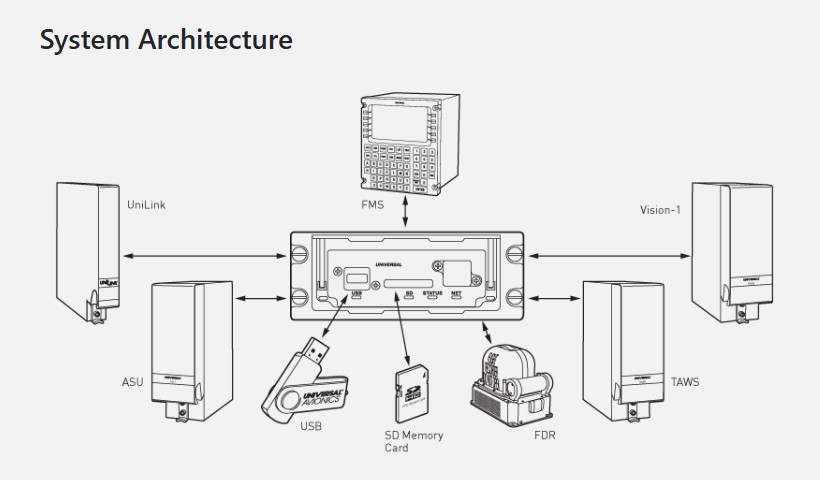

  • Appears as a network file server to other interfaced LRUs
  • Transfers data files between media ports and LRU using high-speed Ethernet data bus connection
  • Up to 8 compatible products are supported simultaneously, including Universal's FMS, TAWS, Vision-1®, UniLink®, ASU and UCD systems
  • Lighter and smaller than the DTU-100
  • Available in fixed-mount and portable versions
  • Certified to FAA TSO-C109
  • Meets EASA ETSO-C109



SPECIFICATIONS
Dimensions: Bezel: 2.25" H x 5.75" W, 7.76" D back of bezel to rear of connector Weight: 2.4 lb
mounting: DZUS hard wired: to NCU
faceplate color: Gray or Black Data Format: Digital
Data Input: SD Card or USB Flash Memory, Bi-directional data transfer via 10/100 Mb Ethernet Power: 27.5 Vdc nominal, 28 Watts nomial
Part Number: Description:
1408-00-1 Mounted, Gray, Solid State DTU
1408-00-2 Mounted, Black, Solid State DTU
1409-00-2 Portable, Black, Solid State DTU



®
®
1408-00-1
- Solid State DTU (Mounted, Gray)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
1408-00-2
- Solid State DTU (Mounted, Black)
Price Condition Status
$11,295.00 NEW OUTRIGHT REQUEST LEAD TIME
1409-00-2
- Solid State DTU (Portable, Black)

NSN: 7025-01-582-4812

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

The Solid-State Data Transfer Unit (SSDTU) and the Portable SSDTU replace the DTU-100 (P/N 1406-01-X), Portable DTU-100 (P/N 1407-01-X), DTU (P/N 1403-XX-X, 1405-01-X), Portable DTU (P/N 1404-01-X) and the Accessible Data Unit (ADU) (P/N 3060-0X-0X) in all Universal Avionics applications. Please refer to the Universal Avionics Specifications and Pricing Manual, or to the applicable Flight Management System (FMS) Installation Manual to identify the correct Part Number (P/N) for the project.

The Solid-State Data Transfer Unit (SSDTU) is a direct physical replacement for the DTU or DTU-100. The P2 connector will require replacement if used in the existing installation.  The SSDTU is a different Part Number (P/N) than the DTU or DTU-100, and will require certification approval under FAA Form 337 for installation in the aircraft.
