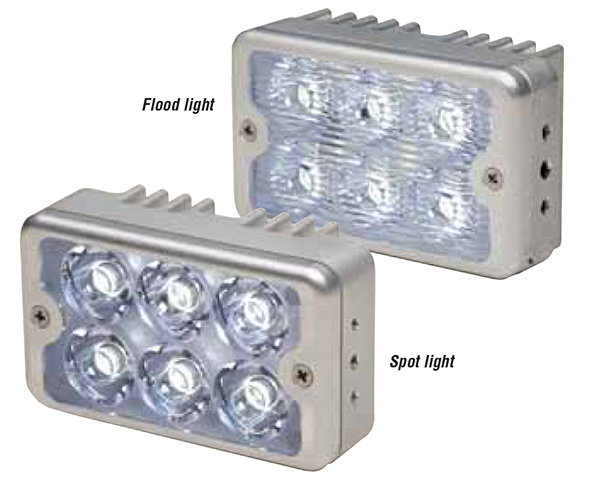

Picture of product 7112522

Part #: 01-0771125-22

Model: 7112522

OEM:

Whelen

Desc:

Recognition LED

Part Number :


71125 Series
FEATURES
  • 71125 LED Recognition/Auxiliary Lights
  • Total Internal Reflector (TIR) Technology
  • Spotlight or Floodlight with beam options, see part number chart for more information
  • Product can be used in multiple applications for aircraft secondary illumination, recognition, logo or down wash
  • Designed to replace the A775 Halogen reflector assembly used as standard in many aircraft
  • At 2” x 3” , there’s nothing that pushes as much light as the 71125
  • Fits in the palm of your hand
  • LED now rivals light output of Quartz and HID technology
  • EMI and RFI free
  • No glass filament to break so they are shock and vibration resistant
  • Long life LEDs have shown conservative lab life results greater than 100,000 hours of continuous operation
  • Greatly reduced power consumption over outdated alternative light sources
  • Machined aluminum assembly and shatter-resistant polycarbonate lenses
  • More light, smaller size, fewer LED’s over closest competition
  • Dimensions: 3.25" W x 1.96" H x 1.25" D
model P/n: LED Light Description:
7112510 01-0771125-10 Spotlight, 10° beam
7112511 01-0771125-11 Spotlight, 20° beam
7112512 01-0771125-12 Floodlight, 90° beam
7112513 01-0771125-13 Spotlight, 30° beam
7112520 01-0771125-20 Spotlight, 10° beam
7112521 01-0771125-21 Spotlight, 20° beam
7112522 01-0771125-22 Floodlight, 90° beam
7112523 01-0771125-23 Spotlight, 30° beam



01-0771125-22
- Recognition LED
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
