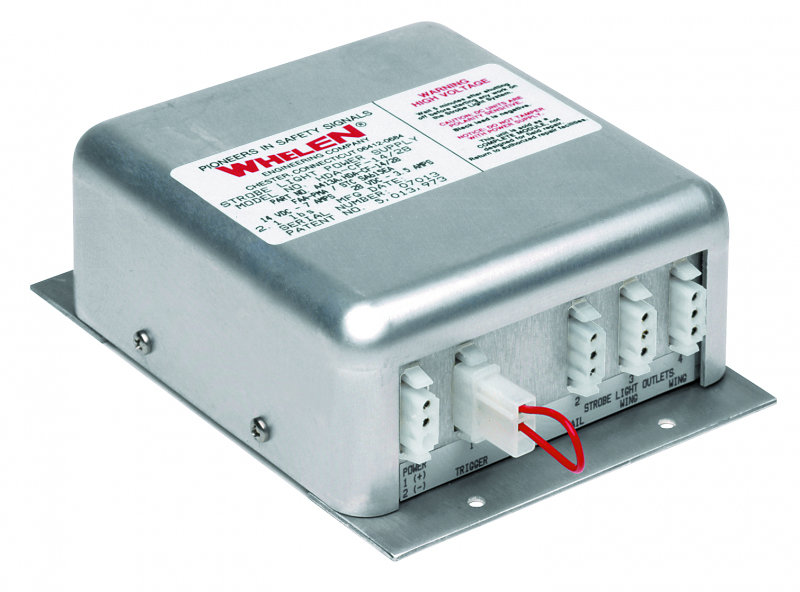

Picture of product HDACF

Part #: 01-0770028-05

Model: HDACF

NSN:

6210-01-445-6688

OEM:

Whelen

Desc:

Power Supply

Part Number :
Whelen Logo

HDACF Series
FEATURES
  • Power supply
  • Provides simultaneous flashing, alternate flashing or both
  • Will operate one, two or three strobe light heads
  • Operating the wing tip strobes in the alternating mode will provide an accumulated 42 joules of power to each light
  • When in simultaneous mode, the accumulated power to each light is 21 joules
  • In the three light mode, the wing tips will flash simultaneous at an accumulated 21 joules each, they alternate with a third light operating at an accumulated 42 joules
  • On the trigger selector outlet, a switch mounted in place of the jumper will allow wing tip outlets 2&3 to be turned off, while the tail outlet 1 will remain on
  • Operates from 10 to 30 VDC
SPECIFICATIONS
Power Consumption: 7.0 Amps @ 14 VDC; 3.5 Amps @ 28 VDC weight: 2.1 lbs
Length: 5.50" L x 5" W x 2.37" H Approvals: FAA/PMA, STC SA615EA



01-0770028-05
- Power Supply

NSN: 6210-01-445-6688

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
