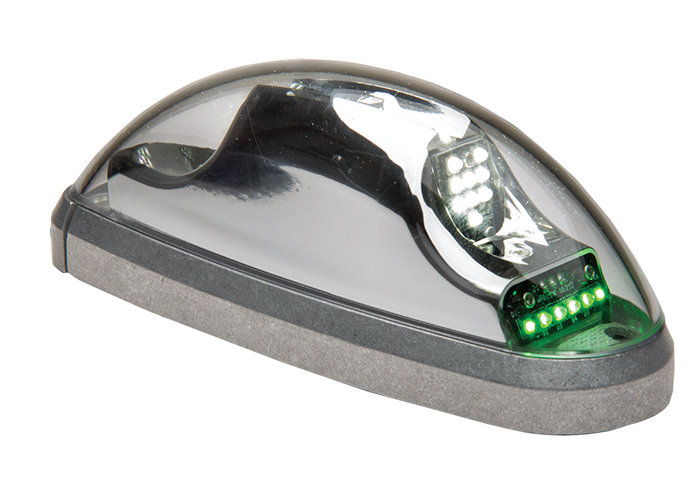

Picture of product OR6001G

Part #: 01-0771733-01

Model: OR6001G

OEM:

Whelen

Desc:

Position/Anti-Collision Light (Green, 14V)

Part Number :


ORION600 Series
FEATURES
  • LED Position/Anti-Collision Lighthead
  • Flus mountable for a wide variety of applications with minimal integration
  • Easily retrofitable to the Whelen legacy strobe products
  • Self-contained wingtip mounted system
  • Eliminates the need for external power supplies and reduces current draw
  • Fully FAA/TSO-C96a & TSO-C30c approved
  • FAR SPEC Certified
  • Replaceable hard coated polycarbonate lens to maintain maximum light output
  • No RF emissions
  • Aerodynamic design without sacrificing light output
  • Exceeds FAA minimum intensity requirements for maximum visibility and increased safety of flight
  • Environmentally tested and certified to RTCA/DO-160G standards
SPECIFICATIONS
size: 2.04" H x 1.78" W x 5.65" L VOltage: 14 or 28 VDC per P/N
Position LED colors: Aviation White & Red or Green per P/N Anti-collision led color: Aviation White
Lenses: Clear Polycarbonate Hardcoat, Field Replaceable
model P/n: Wingtip PTA Description:
OR6001G 01-0771733-01 Green, 12 VDC
OR6001R 01-0771733-02 Red, 12 VDC
OR6002G 01-0771733-11 Green, 28 VDC
OR6002R 01-0771733-12 Red, 28VDC



01-0771733-01
- Position/Anti-Collision Light (Green, 14V)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
