A-30.9 A-30.9

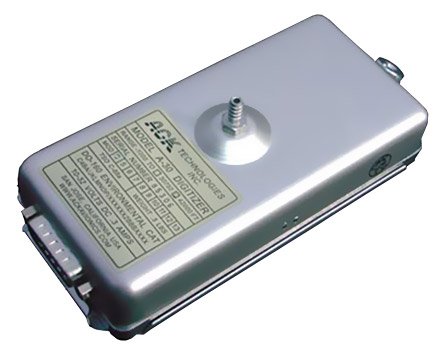

ACK - Altitude Digitizer (Dual Output)
product image
Part Number :
ACK logo

A-30.9
FEATURES
  • Altitude Encoder/42K, dual RS232 outputs
  • Adds Mode C capability the most cost effective way
  • Latest solid state electronics for high reliability
  • Small, light, high quality encoder
  • Quick and easy installation
  • Compatible with most transponders in use today
  • Code compatible with all classes of Mode S transponders
  • FAA TSO-C88a Approved

Includes:

  • Quick release mounting tray
  • 4 foot color coded wiring harness with pre-wired jack
  • Static line and fittings for installation in any aircraft
  • Installation manual with transponder pin outs
  • Three Year Warranty
SPECIFICATIONS
Approvals: FAA TSO C-88a German LBA 10.221/4 Range: A-30.4 -950 to 30,750 A-30.8 -950 to 42,000
Accuracy: Typical ± 20 feet maximum ± 50 feet DIMENSIONS: 6 x 2.65 x 1.7 inches
Weight: 7.1 oz Operating voltage: 10 to 32 volts DC
Operating current: 150 MA (.15 Amps) Operating temperature: -4 to 131° F
Environmental : DO-160B Cat: C4BA/JKLMNOPS/XXXXXXZZBBBXXXX



X
-4 to 131° f
DO-160B Cat: C4BA/JKLMNOPS/XXXXXXZZBBBXXXX
A-30.9
- Altitude Digitizer (Dual Output)
Price Condition Delivery
$295.00 NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: No

There are no Frequently Asked Questions at this time. Please contact us at questions@seaerospace.com if you have any questions for us to answer.
