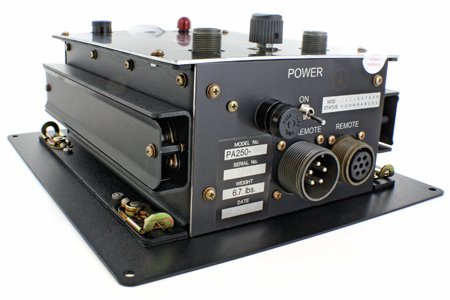

Picture of product PA250-001

Part #: PA250-001

OEM:

AEM

Desc:

250 Watt Power Amplifier

Part Number :

FOR REFERENCE ONLY



PA250-001
FEATURES
  • High power audio amplifier
  • Remote mounted modular amplifiers capable of producing 250W of power
  • Protective circuits protect semiconductor components from reverse polarity, excessive current or voltage, and internal or external short circuits
  • Used with AA21, AA22  and PM01-001 controllers



SPECIFICATIONS
Dimensions: 4.26" H x 10.00" D x 8.75" W (w/ mounting plate) 4.26" H x 9.17" D x 6.63" W (w/out mounting plate) Weight: 6.75 lbs.
Input Power: +24 to +36 VDC normal +28 VDC max Output Power: 250 watts into 1.75 Ω, with a 5 mVrms, 1 kHz signal applied to the microphone input
Temperature: -35 C - 50 C Altitude: 25,000 ft. max
