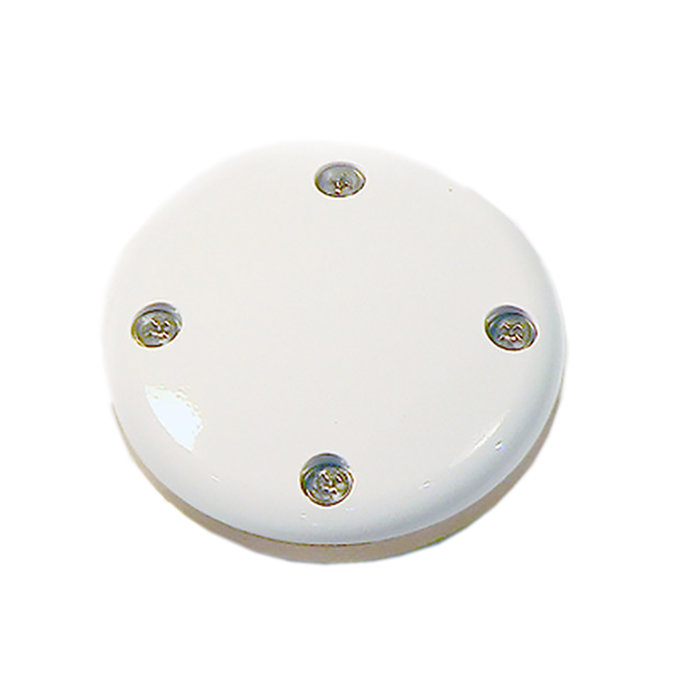

Picture of product AT2775-110GA

Part #: AT2775-110GA

OEM:

AeroAntenna

Desc:

IRIDIUM/ GPS Antenna (Round)

Part Number :


AT2775-110GA



FEATURES

  • AT2775-110 is a high performance IRIDIUM antenna which can be installed on all turbine, turboprop, and piston airframes
  • For use with IRIDIUM satellite receivers for voice or data communications



SPECIFICATIONS
Frequency: 1595 ±30Mhz Polarization: Right Hand Circular
Axial Ration: 3 dB Max at Bore Sight Connector: TNCF
Finish:  White Polyurethane Noise Figure: 2.5 dB Max @ 25°C
Impedance: 50 Ohms Weight: 8 oz max
Altitude: 70,000 ft. Operating Temp:  -55° C to +85°C
tso:  C-144
Part Number: Description:
at2775-110ga IRIDIUM/ GPS Antenna, Round



AT2775-110GA
- Iridium Antenna
