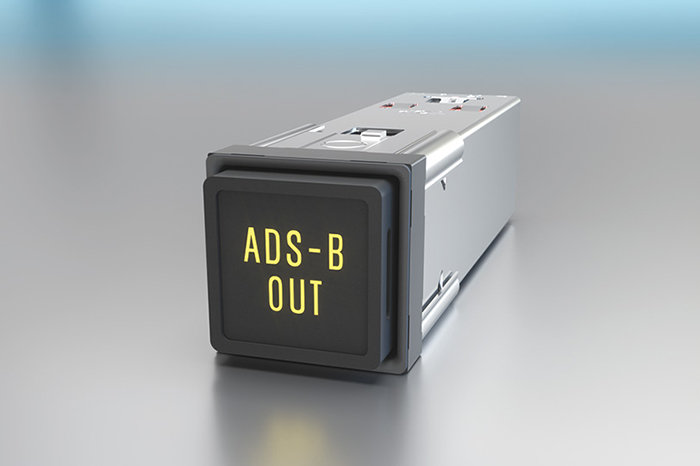

Picture of product SR429/1M

Part #: SR429/1M

OEM:

Applied Avionics

Desc:

ARINC 429 Digital-To Analog Signal Converter

Part Number :

Applied Avionics, Inc.

SR429/1M
FEATURES
  • The SR429/1M is a single bit ARINC converter, with additional inputs for up to two independent discrete analog signals
  • The typical application for the SR429/1M is for failure indications, although the device can be used for a wide range of ARINC digital to analog conversion situations
  • What makes the SR429/1M device unique is its ability to be packaged inside a traditional switch, indicator or NEXSYS Module
  • Output will be normally Ground and become Open (high impedance) upon 1) a “fail” signal from the internal health monitor or 2) an indication from either of the optional external inputs
  • The internal fail sense circuitry simultaneously monitors the operation of the internal ARINC decoder and 2 optional external inputs and drives a single discrete output
  •  Applications include discrete single-bit warning, including ADS-B Out failures
  • Simple device, not subject DO-178 or DO-254 requirements
  • Can be specified for any single-bit on any single label
  • Other options include ARINC transmission speeds, parity checking, and discrete output type (Active Low or Active Open)
  • Device qualifies as simple and has no software or firmware
  • Internal watchdog timer to monitor validity of incoming ARINC data stream
  • Accommodates two additional external signal inputs with discrete output on “fail”
  • Reduces circuit complexity, size, weight, and installation labor

SPECIFICATIONS

NON-OPERATING: -55°C to +125°C OPERATING VOLTAGE (MAX/ NORM/ MIN): +32 VDC /+28 VDC/+18 VDC
OPERATING temperature: -55°C to +85°C RELABILITY MIL-HDBK-217F, NOTICE 2: Airborne Inhabited Cargo (AIC) at +40°C Continuous Operation, MTBF = 116,317 Hrs
power SUPPLY input CURRENT: 8 ma maximum ARINC 429 input: Per ARINC 429 specification
LOW LEVEL oUTPUT VOLTAGE @ 1A (VOL): 0.4 VDC typical, 0.6 VDC Max HIGH LEVEL OUTPUT VOLTAGE (VOH): Open Drain +32 VDC maximum pull-up allowed
RESISTIVE/INDUCTIVE: 1.0 A maximum / 0.5 A maximum rESET fROM POWER LOSS: 5 second minimum @ +25°C
HOLD UP POWER LOSS: (200 ms minimum ) IN 1 and IN 2:Input Timing 5 ms typical, Low Level Input Current (IIL) 1 mA maximum, Low Level Input Voltage (VIL) < +6 VDC, High Level Input Voltage (VIH) > +20 VDC

SR429/1M
- ARINC 429 Digital-To Analog Signal Converter
