Model: TAS600

Avidyne - TAS for Single Engine Entry Level A/C

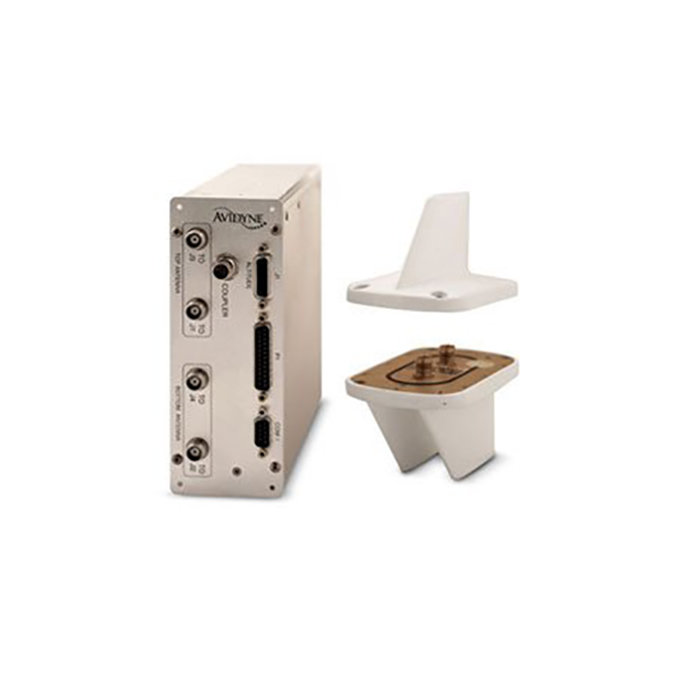

product image
Part Number :


TAS600 Series
FEATURES
  • Dual Antenna Traffic Advisory Systems
  • Based on technology originally developed for air-transport TCAS
  • Four different dual-antenna TAS systems, designed for type of aircraft
  • Detect and actively interrogate other aircraft transponders within range
  • Designed to meet the specific needs of each class of aircraft, providing a full 30-second decision time at a closure rate of up to 1200 knots
  • Real-time traffic monitoring and advisories - not radar-coverage limited & operates independently of ground-based systems
  • Fully ADS-B upgradeable (RTCA DO-260B) with Target Correlation & Long-Range Target Display with ADS-B "In" upgrade
  • Display the surrounding traffic on compatible display systems
  • Provides audible and visual alerts in the event of potential traffic conflict
  • Provides a graphical overlay view and traffic depiction with TCAS symbology on display systems from over 15 different manufactures including Avidyne's Entegra Release 9 and EX Series MFDs, Garmin's G1000 and 400/500 series, and displays from Honeywell, Aspen, Rockwell Collins, Chelton, Sandel, Avalex, and more
  • 30 maximum targets displays, 50 targets tracked and active interrogation
  • Provides three levels of alert
  • Each alert provides an altitude separation number and arrow indicating climbing or descending rate of 500 feet per minute or greater
  • Three alerts include:
    • Other Traffic (OT) - depicted as hollow Cyan or White Diamond beyond 6nm in range and has altitude greater than ±1200 feet relative to your aircraft
    • Proximity Alert (PA) - depicted as solid Cyan or White Diamond withing 6nm in range and has altitude within ±1200 feet, but is not considered a collision threat
    • Traffic Alert (TA) - depicted as solid Yellow Circle & automated voice alert is activated when intercept course is within 30 seconds, less than .55 nm and less than ±800 ft
  • Heads-up audible position alert
  • TAS600 Series System Models include:
    • TAS600 - entry-level, single-engine piston aircraft 7nm Range, 3,500' vertical separation max & 18,500' service ceiling
    • TAS605 - mid-performance aircraft & rotorcraft 13nm Range, 5,500' vertical separation max & 55,000' service ceiling Accepts ARINC 429 Heading
    • TAS615 - high-performance aircraft & rotorcraft 17nm Range, 10,000' vertical separation max & 55,000' service ceiling Accepts ARINC 429 Heading
    • TAS620 - highest level 21nm Range, 10,000' vertical separation max & 55,000' service ceiling Accepts ARINC 429 Heading
  • Dual directional antennas standard with all TAS600 series systems
  • ARINC 429 Output Interface



SPECIFICATIONS
TSO: C147, TAS Processor Dimensions:  7.25"W x 3.1"H x 11.68"D
Processor Weight: 6.8 lbs Power Requirements Max: 2.90 Amp @ 14VDC; 1.55 Amp @ 28VDC
Environmental: DO 160D Temperature: -20°C to +55°C Operating; +70°C short term
Altitude Input: Gray Code, ARINC 429 Cooling: None Required
Antenna Dimensions: 3.24"W x 2.76"H x 5.14"D Antenna Weight: Top: 10.5 oz / Bottom: 12 oz



71-2460
- TAS for Single Engine Entry Level A/C
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

No, an STC is not required for TAS (Traffic Awareness) and/or TCAS I installations on Part 91 and Part 135 aircraft. FAA order 8900.1 provides guidance for a follow on field approval by the FAA. An FAA approved Aircraft Flight Manual Supplement is required as well.
