Part #:

Model: DMP-300

Avionics Innovations - Digital Media Player

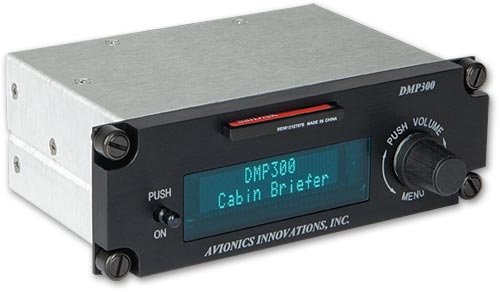

product image
Part Number :


DMP 300 Digital Media Player
FEATURES
  • Digital Media Player plays MP3, voice and music audio files recorded on CompactFlash™ memory cards (CF cards prepared & installed by user)
  • Uses CompactFlash™ cards
  • NVIS version available (see P/N chart)
  • User programmable
  • Plays two languages simultaneously
  • Can be used for Entertainment, Cabin briefings, and Tour briefings
  • 7 Discrete trigger inputs
  • 2 External discrete outputs
  • Jog Mode (when enabled) allows 4 of the 7 triggers available to be redefined
  • GPS trigger can receive RS-232 or RS-422/485 serial data from panel-mount GPS receivers
  • Compatible with most models of Garmin, Honeywell (Allied Signal/Bendix-King) panel mount receivers
  • Audio outputs are ground-referenced, line-level signals with a typical signal level of 1.8 V p-p
  • If isolation is required, an audio isolation transformer must be provided externally
  • Display Dimmer
  • Remote Pause/Play Button
  • Volume level is selected on the front panel, stereo balance is selectable from setup mode
  • Tested to DO-160 environmental test requirements
  • FAA/PMA approved
  • Built with additional EMI/RFI shielding to prevent interference with the operation of communications, navigation & radar systems
  • Should be installed in a normally heated, pressurized section of the aircraft, however the unit contains no moving parts and does not require special vibration isolation
  • May be installed in any orientation and at any angle, however it is advised to ensure that the memory card does not accidentally fall loose in a downward facing position
SPECIFICATIONS
Power source: Min: 10 VDC (1 A) Max: 35 VDC (0.1 A) Nom: 14 VDC (0.5 A); 28 VDC (0.25 A)
Dimensions: 5.75" W x 2" H x 3.25" D
Weight: 0.75 lb
Part NumberMedia Player Description:
10000-10 Digital Media Player
10000-12 Digital Media Player w/NVIS Compatible Lens



10000-10
- Digital Media Player
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT

SEA Repair Capabilities: No

10000-12
- Digital Media Player
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No
