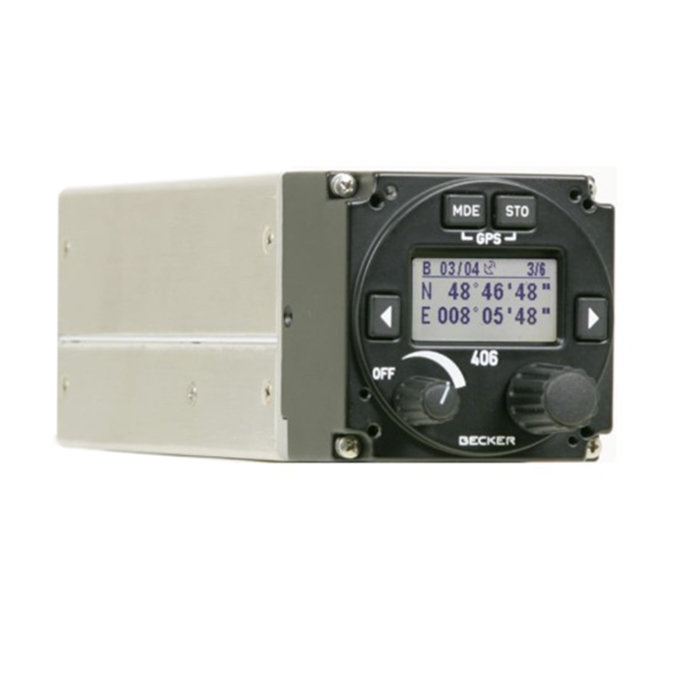

Picture of product BD406-(001)
Part #: 0619.760-924
Model: BD406-(001)
Desc: Beacon Decoder
OEM: Becker Avionics
Part Number :
Becker Logo



FEATURES
  • BD406 is a high-performance signal decoder designed for precise GPS-based distress signal detection
  • Available in panel mount (2 ¼ inch) or portable versions
  • Provides direct navigation to distress beacons, even in adverse conditions
  • For rescue crews, airport services, and SAR monitoring, with accessories
  • Direct navigation mode toward the position of the distress beacon
  • Complimentary solution to existing homing systems without 406 MHz detection capability
  • Portable or panel mount 2 ¼ inch design
  • Highly sensitive decoder to receive distress signals over long distances and in adverse conditions
  • Displays the exact position and identity of the beacon
  • Optional for use as a SAR monitoring system for airport services
  • Available as remote device without control head
  • wide range of accessories: antennas, carry equipment e.g. for car mounting
  • Absolute max. input power at antenna input: +30 dBm



SPECIFICATIONS
Nominal Voltage BD406: 9…32 VDC, PBD406: 9…36 VDC (nominal external supply voltage), 12 VDC (battery voltage – nominal) Dimming Control: 14 VDC or 28 VDC
Frequency Range: 406.020…406.081 MHz Temperature Compensated VCO Long-Term Stability: ≤ ±5 ppm after 10 years
Operating Temperature (as per RTCA DO-160E): BD406 with control head: -15…+55 °C (short-time -40…+70 °C), PBD406: -15…+50 °C Operating Altitude (as per RTCA DO-160E): BD406: 15,000 ft, PBD406: n/a
Vibration (as per RTCA DO-160E): BD406: Fixed wing Category S (Curve M), PBD406: Rotary wing Category U (Curve G) Display: Graphic 128×64 dots – LCD, white or NVG compatible backlight
Weight: BD406 with control head: ≤700 g (1.54 lb), PBD406: ≤3700 g (8.16 lb) COSPAS/SARSAT analysis: Reception, analysis, correction of COSPAS/SARSAT data signal
Modulation (data encoding): Biphase L-phase +1.1 / -1.1 rad Bit rate:  400 bps ±1%
Digital messages: Short Message 112 bit, Long Message 144 bit Sensitivity:  -104…0 dBm @ 50 Ω
Dynamic range:  -104…0 dBm Nominal impedance of antenna input:  50 Ω
Part Number: Description:
0619.760-924 Beacon Decoder




0619.760-924
- Beacon Decoder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
