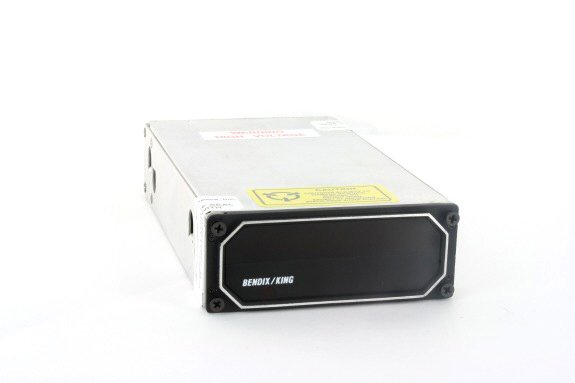

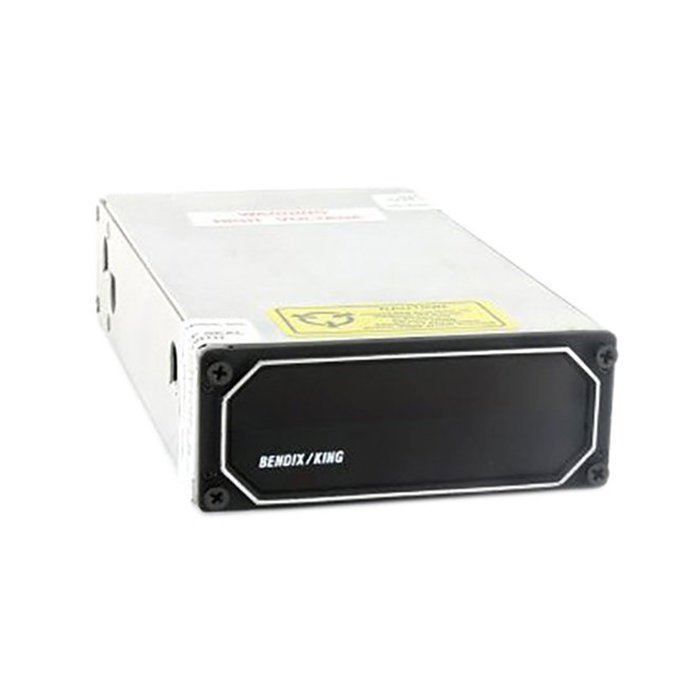

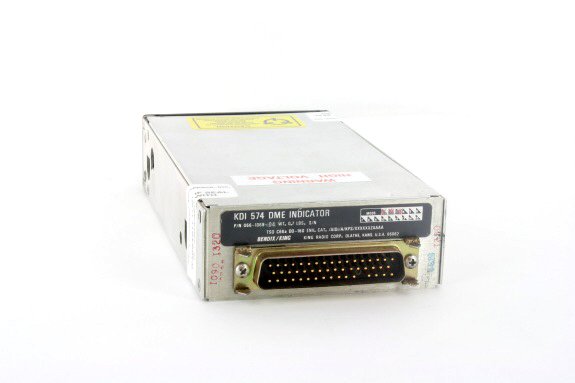

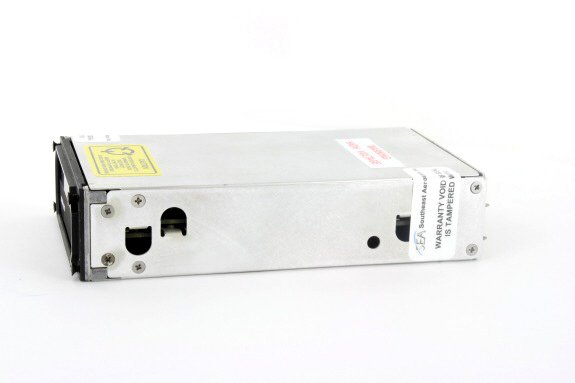

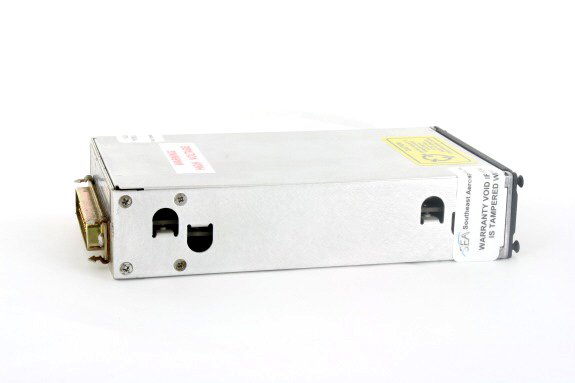

KDI-574 066-1069-04

BendixKing - DME Indicator
Part Number :


KDI-574
FEATURES
  • Similar to KDI-572 but DOES NOT include ON/OFF, NAV 1/2, DME Hold selector
  • Master indicator without rotary switch; must be used with an external system power switch and external switch for selection of tuning sources
  • Features simultaneous display of distance, ground speed, and TTS, plus annunciation of NAV 1, Hold, NAV 2 and RNAV
  • For use with Bendix/King KDM-706 / KDM-706A, KN-63 DME and KTU-709 TACAN
  • Easy-to-read 7-segment gas discharge readouts
  • Light sensor photocell automatically dims display
  • Provides remote function switch for NAV channeling selection and DME hold
  • No selector switch
  • Models available with annunication of NAV1/2, Hold visual cue from KDI-572 Indicators (see table below)
  • Models available with non-diffused display lens and gray bezel (see table below)
  • TSO'd
SPECIFICATIONS
Size: 3.50"W x 1.35"H x 6.47"L Weight: 0.7 lbs.
TSO Compliance: Category A1D1/A/KPS/XXXXXXZAAAA DO 160 Altitude To 50,000 feet
Operating Temperature: -20C to 70C Channel Selection Inputs: Requires 2x5, shifted BCD or slip code for DME channel selection
Part NumberDME Master Indicator Description
066-1069-04 Black face, with NAV1/2 Hold visual cue, diffused lens
066-1069-05 Black face, without NAV1/2 Hold visual cue, diffused lens
066-1069-11 Black face, with NAV1/2 Hold visual cue, non-diffused lens
066-1069-13 Gray face, with NAV1/2 Hold visual cue, diffused lens
NOTE: Same base part numbers used for all KDI-572/573/574 DME Indicators



066-1069-04
- DME Indicator
Price Condition Delivery
$1,050.00 SV OUTRIGHT IN STOCK
$650.00 SV EXCHANGE IN STOCK
$3,875.00 NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: Yes

066-1069-05
- DME Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

066-1069-14
- DME Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

The data bus for the KDI-572 /573/574 indicators is available from the KN-62/62A/64 but there is no 192 volt output from these DME units to light the display of these DME indicators.
None, they represent the same unit. Original King Radio part numbers were 9 digits. For example, 066-3056-01. During the Bendix and King merger (i.e. Bendix/King), a new part numbering system was created that converted these 9 digit part numbers to 12 digits. Therefore, 066-3056-01 became 066-03056-0001. Despite this numbering change, units that were originally from the King Radio design still have the 9 digit part number format on the unit dataplate. The 12 digit format for King units appears to be used for catalog and internal Honeywell purposes only. Therefore, any unit that has a zero in its third to last number (i.e. XXX-XXXX-X0XX) has a 9 digit part number (i.e. XXX-XXXX-XXX) on its dataplate / ID Plate.
In January 1989 Bendix/King changed from a nine digit to a twelve digit part numbering system. The new, larger 12 digit numbers allowed for the inclusion of software version into the last two digits of the part number for certain units in which software changed frequently such as EFIS and TCAS processors. Therefore, the two digits immediately preceding the software version indicate the hardware version of the unit.

Different software versions imply different operational features and/or interface capabilities and software modifications imply software repairs (bug fixes) to insure proper operation of these features and interfaces. Software version upgrades frequently require hardware modifications to the unit. Such hardware modifications accompanying software version upgrades do not necessarily change the hardware version of the unit.
Southeast Aerospace exchanges are based on the return of an undamaged, economically repairable core unit with identical part number as the unit shipped to the customer. An "economically repairable" core is defined as one where the cost to repair/overhaul (or Repair Cap) does not exceed 80% of the original SV/OH exchange price billed. Should the Repair Cap exceed 80%, the customer will be billed the additional amount. In the event this amount exceeds the Outright Price for the unit, the customer would only be billed the difference between the Outright Price and SV/OH Exchange Price with the core returned as-is to the customer.

Here is an example of such a transaction:

$1000 Exchange Price charged to customer
$1000 x .8 = $800 Maximum Allowable core repair charge or Repair Cap

$2000 Cost to repair core unit
- $800 Less Core repair cap
---------
$1200 Additional billing amount.

2200.00 Total Cost of transaction

Please Note:
SEA offers exchange on new items as well. However, repair cap as indicated above is still based on SV/OH exchange price.
