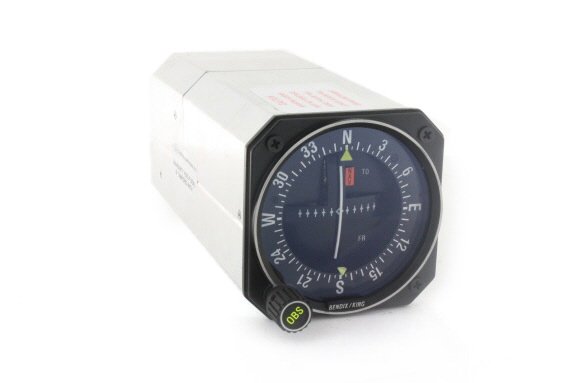

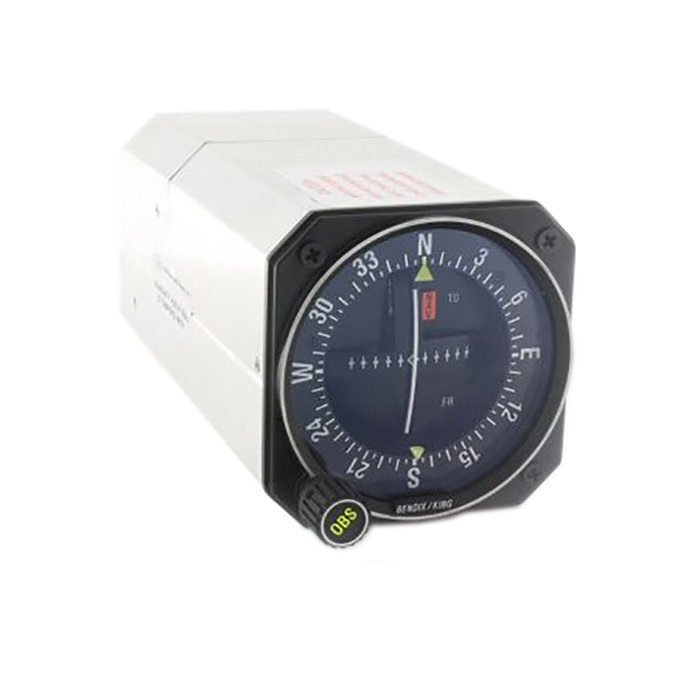

KI-203
FEATURES
- Navigation Indicator containing VOR/LOC left-right needle, To-From Indicator, VOR/LOC Warning Flag, OBS, and integral VOR/LOC Converter
- Rectilinear instead of pendulum type meter movements for more precise indicator readings
- Internally lighted
- Metal bezel with glass lens
- Commonly used with KN-53 nav receivers, KX-155 nav/comm but can be used with older model KX-170/175 series radios
- Models available equipped with a course datum synchro for autopilot use (see table below)
- Similar to KI-204 indicator but DOES NOT include Glideslope Deviation Indication
- TSO'd
SPECIFICATIONS
| Size: | 3.25"W x 3.25"H x 9.85"L | Weight: | 1.6 lbs. |
| TSO (VOR): | FAA TSO C40a Operation above 15,000 ft.; DO 114 (by FAA approval) | TSO (LOC): | FAA TSO C36c Class D; RTCA DO 131 |
| Typical Accuracy (VOR): | (VOR) Bearing error less than 1.7 degrees. Full scale deflection for 10 deg. course error. | Typical Accuracy (LOC): | (LOC) Centering error less than 3uA. Three fifths delfection for 4dB tone ratio |
| Converter Inputs: | .5VRMS +-10% ARINC phasing (VOR Composite Input); 100k ohms (Input Impedance) | Converter Output Drive Capability: | Five 1K loads 150 uA full scale (VOR/LOC Deviation); Two 200 ohm, 200-0-200uA loads (TO/FROM); Five 1K ohm, 0-260uA loads (VOR/LOC Warning Flag) |
| Course Datum Synchro Output: | 393mV/degree, 1 deg. Accuracy Typical | Course Datum Synchro Input: | Standard ARINC X,Y,X 11.8VRMS; .030AMP; 400Hz |
| Part Number | VOR/LOC Indicator Description |
|---|---|
| 066-3034-00 | Black bezel, 14/28 volt white lighting, VOR/LOC Converter, VOR/LOC needle, NAV flag, TO/FROM flag, 30Hz OBS resolver |
| 066-3034-01 | Black bezel, 14/28 volt white lighting, VOR/LOC Converter & needle, NAV flag, TO/FROM flag, 30Hz OBS resolver, Course Datum Synchro |
| NOTE: | Same base part number used for all KI-202/203/204/206/207 indicators |
066-3034-00
- VOR/LOC Indicator
NSN: 5210-01-356-1012
| Price | Condition | Delivery |
|---|---|---|
| $595.00 | SV OUTRIGHT | VIEW STOCK |
| $2,730.00 | NEW OUTRIGHT | CALL OR RFQ |
SEA Repair Capabilities: Yes
066-3034-01
- VOR/ILS Indicator
| Price | Condition | Delivery |
|---|---|---|
| CALL OR RFQ | CALL OR RFQ | CALL OR RFQ |
SEA Repair Capabilities: Yes
Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com
What is the difference between Honeywell (Bendix/King) part numbers with 9 digits vs. 12 digits?
None, they represent the same unit. Original King Radio part numbers were 9 digits. For example, 066-3056-01. During the Bendix and King merger (i.e. Bendix/King), a new part numbering system was created that converted these 9 digit part numbers to 12 digits. Therefore, 066-3056-01 became 066-03056-0001. Despite this numbering change, units that were originally from the King Radio design still have the 9 digit part number format on the unit dataplate. The 12 digit format for King units appears to be used for catalog and internal Honeywell purposes only. Therefore, any unit that has a zero in its third to last number (i.e. XXX-XXXX-X0XX) has a 9 digit part number (i.e. XXX-XXXX-XXX) on its dataplate / ID Plate.
What is the function of the course datum synchro?
Available as an option in some navigation CDIs, the course datum synchro is useful for autopilot interface. Course datum provides course information to the autopilot for use to compute VOR intercepts.
Why did Bendix/King change their part numbers from a 9 digit to a 12 digit format?
In January 1989 Bendix/King changed from a nine digit to a twelve digit part numbering system. The new, larger 12 digit numbers allowed for the inclusion of software version into the last two digits of the part number for certain units in which software changed frequently such as EFIS and TCAS processors. Therefore, the two digits immediately preceding the software version indicate the hardware version of the unit.
Different software versions imply different operational features and/or interface capabilities and software modifications imply software repairs (bug fixes) to insure proper operation of these features and interfaces. Software version upgrades frequently require hardware modifications to the unit. Such hardware modifications accompanying software version upgrades do not necessarily change the hardware version of the unit.
Different software versions imply different operational features and/or interface capabilities and software modifications imply software repairs (bug fixes) to insure proper operation of these features and interfaces. Software version upgrades frequently require hardware modifications to the unit. Such hardware modifications accompanying software version upgrades do not necessarily change the hardware version of the unit.
Is it true that the KI-202, KI-203, KI-204, and KI-206 are not repairable if they are below serial number 10000?
No, units with serial numbers below 10000 can be repaired. However, is it rather expensive due to the meter replacement kit needed to repair these units. We would suggest that you purchase a newly overhauled unit with a serial number above 10000.
My KI-203 / KI-204 indicator seems to be off several degrees, what should I do?
As per the installation manual, if an error of greater than 2 degrees exists when testing with a ramp tester, then VOR centering is changed behind the left mounting screw with the proper adjustment tool. This procedure is detailed in the Installation Manual for these units.
