Part #: 066-3034-02

Model: KI-204

NSN:

5826-01-380-8638

OEM:

BendixKing

Desc:

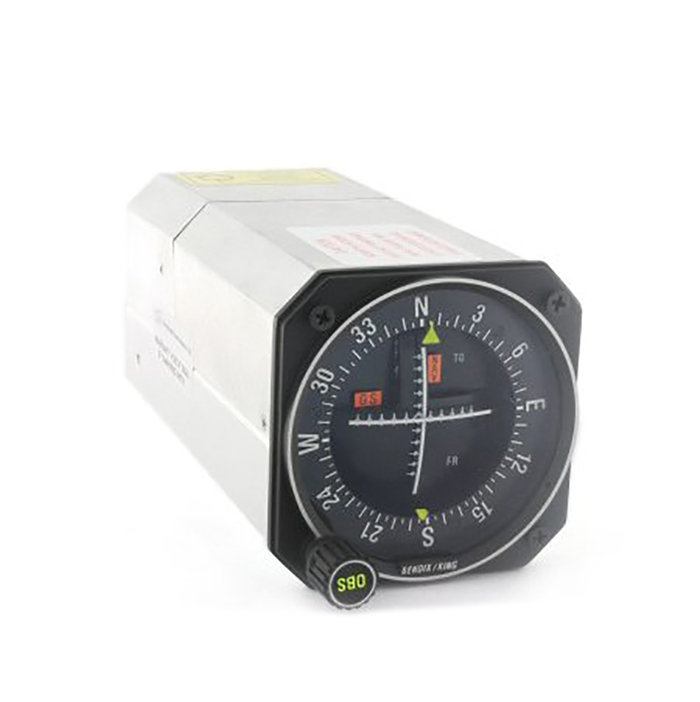

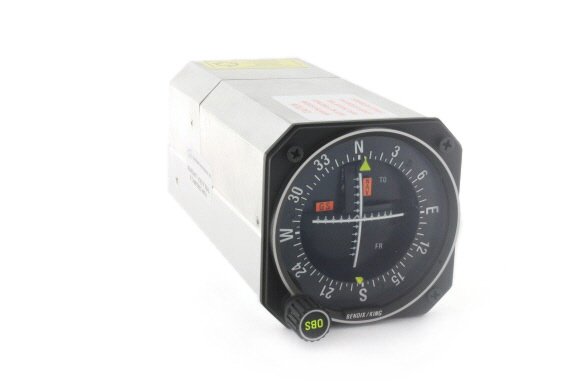

VOR/LOC/GS Indicator

Part Number :


KI-204



FEATURES

  • Navigation Indicator containing VOR/LOC left-right needle, To-From Indicator, VOR/LOC Warning Flag, Glideslope Deviation needle and Warning Flag, OBS, and integral VOR/LOC Converter
  • Rectilinear instead of pendulum type meter movements for more precise indicator readings
  • Internally lighted
  • Metal bezel with glass lens
  • Commonly used with KN-53 nav receivers, KX-155 nav/comm but can be used with older model KX-170/175 series radios
  • Commonly used with KN-75 remote mounted Glideslope Receiver
  • Models available equipped with a course datum synchro for autopilot use (see table below)
  • Models available with gray or black bezels (see table below)
  • Models available with 5 volt lighting (see table below)
  • Similar to KI-203 indicator but DOES include Glideslope Deviation Indication
  • TSO'd



SPECIFICATIONS

Size: 3.25"W x 3.25"H x 9.85"L Weight: 1.7 lbs.
TSO (VOR): FAA TSO C40a Operation above 15,000 ft.; DO 114 (by FAA approval) TSO (LOC): FAA TSO C36c Class D; RTCA DO 131
Typical Accuracy (VOR): (VOR) Bearing error less than 1.7 degrees. Full scale deflection for 10 deg. course error. Typical Accuracy (LOC): (LOC) Centering error less than 3uA. Three fifths delfection for 4dB tone ratio
TSO (GS): FAA TSO C34c Class D, RTCA DO-132 -Temperature Range: -15 to +55C (operating)
Converter Inputs: Inputs: .5VRMS +-10% ARINC phasing (VOR Composite Input); 100k ohms (Input Impedance) Converter Output Drive Capability: Five 1K loads 150 uA full scale (VOR/LOC Deviation); Two 200 ohm, 200-0-200uA loads (TO/FROM); Five 1K ohm, 0-260uA loads (VOR/LOC Warning Flag)
Course Datum Synchro Output: 393mV/degree, 1 deg. Accuracy Typical Course Datum Synchro Input: Standard ARINC X,Y,X 11.8VRMS; .030AMP; 400Hz
Part Number: Description:
066-3034-02 Black bezel, 14/28 volt white lighting, VOR/LOC Converter & Needle, NAV flag, TO/FROM flag, Glideslope Needle & Flag, 30Hz OBS resolver
066-3034-03 Black bezel, 14/28 volt white lighting, VOR/LOC Converter & Needle, NAV flag, TO/FROM flag, GS Needle & Flag, 30Hz, Course Datum Synchro
066-3034-18 Black bezel, 5 volt lighting, VOR/LOC Converter & Needle, NAV flag, TO/FROM flag, Glideslope Needle & Flag, 30Hz OBS resolver
066-3034-19 Black bezel, 5 volt lighting, VOR/LOC Converter & Needle, NAV flag, TO/FROM flag, GS Needle & Flag, 30Hz, Course Datum Synchro
066-3034-20 Gray bezel, 14/28 volt white lighting, VOR/LOC Converter & Needle, NAV flag, TO/FROM flag, Glideslope Needle & Flag, 30Hz OBS resolver
066-3034-21 Gray bezel, 14/28 volt white lighting, VOR/LOC Converter & Needle, NAV flag, TO/FROM flag, GS Needle & Flag, 30Hz, Course Datum Synchro
066-3034-22 Gray bezel, 5 volt lighting, VOR/LOC Converter & Needle, NAV flag, TO/FROM flag, Glideslope Needle & Flag, 30Hz OBS resolver
066-3034-23 Gray bezel, 5 volt lighting, VOR/LOC Converter & Needle, NAV flag, TO/FROM flag, GS Needle & Flag, 30Hz, Course Datum Synchro
NOTE: Same base part number used for all KI-202/203/204/206/207 indicators


PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



Serial # 53981
Condition SV
Mods 1,3,4,5
Tag Date 06/22/23
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 56340
Condition SV
Mods 1,3-6
Tag Date 04/19/23
Shop Southeast Aerospace Inc.
Warranty 6 Months
066-3034-02
- VOR/LOC/GS Indicator

NSN: 5826-01-380-8638

Price Condition Status
$1,195.00 SV OUTRIGHT 2 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
066-3034-03
- VOR/GS Indicator w CRS Datum
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
066-3034-22
- VOR/GS Indicator (Gray, 5V Lighting)
Price Condition Status
$775.00 SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

None, they represent the same unit. Original King Radio part numbers were 9 digits. For example, 066-3056-01. During the Bendix and King merger (i.e. Bendix/King), a new part numbering system was created that converted these 9 digit part numbers to 12 digits. Therefore, 066-3056-01 became 066-03056-0001. Despite this numbering change, units that were originally from the King Radio design still have the 9 digit part number format on the unit dataplate. The 12 digit format for King units appears to be used for catalog and internal Honeywell purposes only. Therefore, any unit that has a zero in its third to last number (i.e. XXX-XXXX-X0XX) has a 9 digit part number (i.e. XXX-XXXX-XXX) on its dataplate / ID Plate.
Available as an option in some navigation CDIs, the course datum synchro is useful for autopilot interface. Course datum provides course information to the autopilot for use to compute VOR intercepts.
In January 1989 Bendix/King changed from a nine digit to a twelve digit part numbering system. The new, larger 12 digit numbers allowed for the inclusion of software version into the last two digits of the part number for certain units in which software changed frequently such as EFIS and TCAS processors. Therefore, the two digits immediately preceding the software version indicate the hardware version of the unit.

Different software versions imply different operational features and/or interface capabilities and software modifications imply software repairs (bug fixes) to insure proper operation of these features and interfaces. Software version upgrades frequently require hardware modifications to the unit. Such hardware modifications accompanying software version upgrades do not necessarily change the hardware version of the unit.
No, units with serial numbers below 10000 can be repaired. However, is it rather expensive due to the meter replacement kit needed to repair these units. We would suggest that you purchase a newly overhauled unit with a serial number above 10000.
As per the installation manual, if an error of greater than 2 degrees exists when testing with a ramp tester, then VOR centering is changed behind the left mounting screw with the proper adjustment tool. This procedure is detailed in the Installation Manual for these units.
