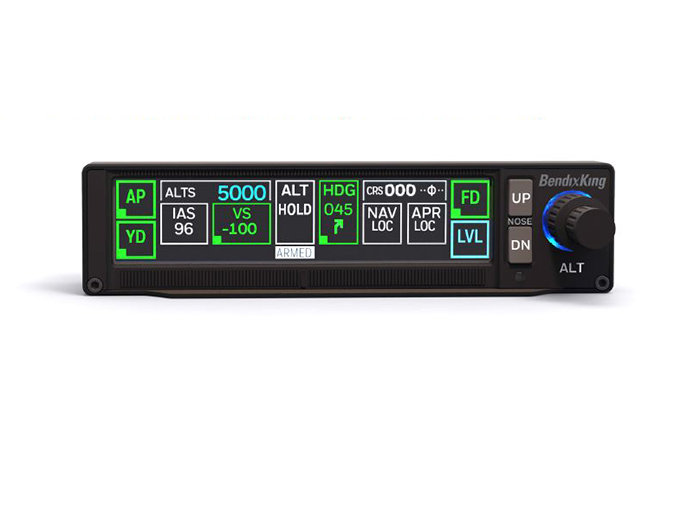

product image

Part #: 89000019-010-0000

Model: KMC-231

OEM:

BendixKing

Desc:

Mode Controller/Annunciator

Part Number :



KMC-231



FEATURES

  • Mates with KC-230 Flight Computer
  • Provides AP/FD selection, visual & aural annunciations
  • Backlit LED touchscreen
  • Displays altitude target, course, course deviation, and soft-buttons to control lateral and vertical modes
  • Includes soft-buttons to engage and disengage autopilot, yaw damper, and flight director
  • Other soft-buttons include Vertical speed (VS), altitude (ALT), heading (HDG), navigation (NAV), and approach (APR)
  • Features a nose “UP” and nose “DOWN” button to control aircrafy pitch altitude
  • Backlit dual-concentric knob to control altitude preselect target



SPECIFICATIONS

dIMENSIONS: 1.93 inches x 6.30 inches x 1.56 inches (Lx W x H) (49 mm x 160 mm x 40 mm) Mounting: Horizontally
weight: Max 0.74 LBS. (0.34 kg) current draw: The KMC-231 is powered from KC 230. The KMC 231 current draw is included with the KC 230
oPERATING VOLTAGE: Operating Voltage is provided by the KC 230 CIRCUIT bREAKER: The KMC 231 is powered from KC 230. The circuit breaker defined under the kc 230 Specification is sufficient.
cooling: Convection cooled (does not require forced air cooling within the unit operational temperature range software: RTCA/DO-178 Level C
HARDWARE: DO 160G Compliance connectors: DB-26
VIEWING ANGLE ENVELOPE: ±50° Horizontal; 0° TO 35° vertical certification: TSO-C198 Class A1, B, C
Part Number: Description:
89000019-010-00 Mode Controller/Annunciator



Serial # 1910PL6320
Condition NEW
Mods -
Tag Date 06/19/20
Shop Honeywell International Inc.
Warranty 1 Year
Serial # 1910PL6327
Condition NEW
Mods -
Tag Date 06/19/20
Shop Honeywell International Inc.
Warranty 1 Year
89000019-010-0000
- Mode Controller
Price Condition Status
$1,750.00 NEW OUTRIGHT 2 IN STOCK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
