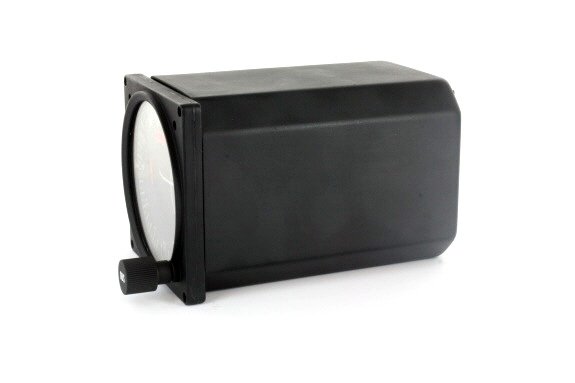

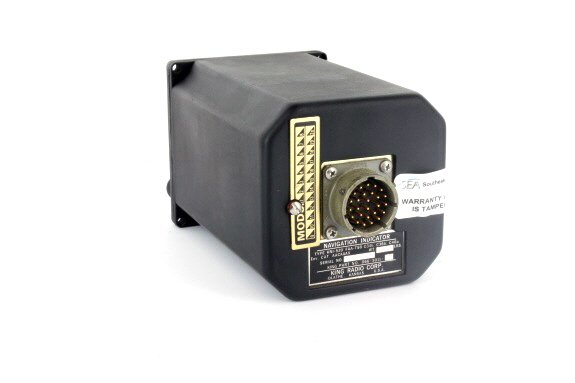

KNI-520

BendixKing - Navigation Indicator
Part Number :


KNI-520
FEATURES
  • Navigation Indicator providing VOR/LOC/Glideslope Indication and course selector
  • Radio navigation information displayed by means of rectilinear crosspointer needles
  • TO-FROM flag provided
  • Glideslope and VOR/LOC warning flags provided
  • Originally designed to with KX-170B & KX-175B nav/comms, KN-73 Glideslope Receivers, and KN-77 Converter
SPECIFICATIONS
TSO: C34B,C36B,C40a Cat. AACAAAX Temperature: -54 to +55C
Weight: 1.8 lbs. Size: 3.25"W x 3.25"H x 7.69"L
VOR/LOC/GS Pointer: 150 micro-amperes through a resistance of 1000 ohms for 4th (outermost) white dot linear deflection in either direction. Resistance measured at +25 deg. C OMNI To-From Flag: 200 micro-amperes through a resistance of 200 ohms for full deflection in either direction. Resistance measured at +25 deg. C
GS and LOC Flags: Flags become fully concealed with a current of 260 microamperes maximum. Resistance of each flag is 1000 ohms at +25 deg. C
Part NumberVOR/LOC/Glideslope Indicator Description
066-3011-01 Standard Unit
066-3011-04 Includes Course Datum Synchro for Autopilot



066-3011-01
- Navigation Indicator
Price Condition Delivery
$750.00 SV OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: Yes

066-3011-04
- Nav Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

As part of our promise to provide the most honest, quality service to our customers, Southeast Aerospace adheres to strict guidelines for certification according to the FAA and Original Equipment Manufacturers (OEM). While most avionics components do not include a prescribed overhaul procedure in the Maintenance Manual, the FAA has set forth guidelines for the cleaning and inspecting of components as referenced in FAR Part 43.2. Therefore, if a component cannot meet the standards of this Federal Air Regulation in relation to inspection criteria and cleaning potential then it should not be deemed as Overhauled. Southeast Aerospace does not believe in simply providing words on a tag or maintenance release to represent the condition of a component. SEA stands behind the work and service followed through with each and every FAA 8130-3 maintenance release it provides.
