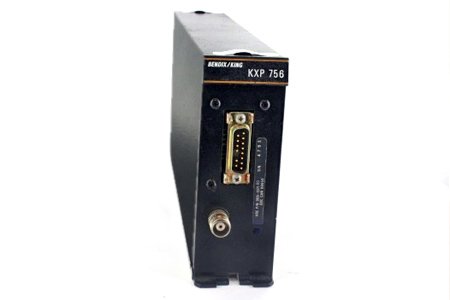

KXP-756
FEATURES
- All Solid State Class 1A, 4096 codes Transponder
- Altitude reporting
- Used with KFS-576 and KFS-576A frequency selector which displays codes in gas discharge numerics.
- 250 watts
- 28VDC
- TSO'd
SPECIFICATIONS
| Size: | 2.00"W x 5.275"H x 11.750"L | Weight: | 3.81 lbs. |
| Receiver Frequency: | 1030 MHz, crystal controlled | Temperature Range: | -55C to +70C |
| Transmitter Frequency: | 1090 MHz +-3 MHz | Altitude: | to 70,000 feet |
| TSO Compliance: | C74c, Class 1A, Env. Cat. DO-160.A2E1/A/MNO/EXXXXXSZAAAA | Applicable Documents: | RTCA Document DO-160 |
| Design: | All solid-state, electronically tuned by single-crystal and single chip LSI digital frequency synthesizer | Receiver Sensitivity: | -73 dbm for 90% reply, nominal |
| Power Requirements: | 11-33 VDC; 1.4 amps at 27.5 VDC | Side Lobe Suppression: | 3 pulse |
| Suppression Input: | Accepts +10 through +70V pulses | Suppression Output: | Provides a minimum 18V, maximum 55V 35 us pulse |
| Part Number | ATC Transponder Description |
|---|---|
| 066-1071-00 | see above |
