product image

Part #: 100240

Model: D1000C

OEM:

Blue Sky Network

Desc:

Modem Unit - satellite tracking system

Part Number :
BlueSky Logo

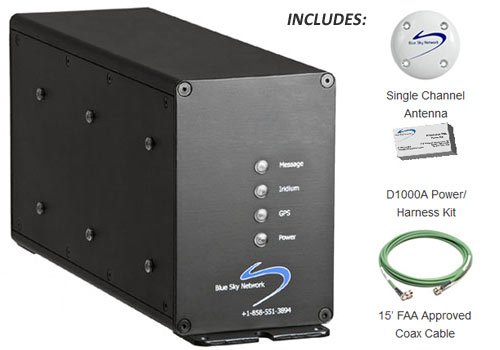

D1000C Kit
FEATURES
  • FAA-Certified D1000C Tracking and Communication Kit
  • Automated and advanced global flight tracking via SkyRouter
  • Compatible with ACH1000 voice communication and two-way messaging option
  • Integrated single channel antenna solution for both Iridium and GPS (only one 3.5” diameter antenna required for GPS, tracking, messaging and voice)
  • Receive e-mail messaging from aircraft via laptop, PDA or EFB with simple browser interface



SPECIFICATIONS
Dimensions: 5.3" H x 3.5" W x 11.25" D Weight: 4.7 lbs
Frequency range: 1565-1626 MHz GPS Frequency: L-Band
Power: 10-33V input (1A Continuous,Temperature:-20° C to 60° C Temperature: -20° C to 60° C
LED Indicators: Power (ON/OFF) Iridium and GPS signal strength, message waiting (ON/OFF) ACH1000 connect: DB9 port for adding voice connection
Data I/O: DB9 for ACH-series control heads RS232 DB9 for telemetry data retrieval Mini-DB9 for firmware upgrade Antenna: Single Channel GPS/Iridium tuned, fully TSO’d
FAA Certification: DO-160D
Part Number Kit Tracker Description:
GDKDC DC see details above
GDKB-DC B/DC see details above, includes Satellite Phone



100240
- Modem Unit - Satellite Tracking System
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
