Part #: GKHEPT

Model: HawkEye PT

NSN:
OEM:	Blue Sky Network
Desc:	HawkEyePT Iridium Satellite Tracker

Part Number :

Price	Condition	Status	Tag Info
$1,295.00	NEW OUTRIGHT	REQUEST LEAD TIME		Send RFQ

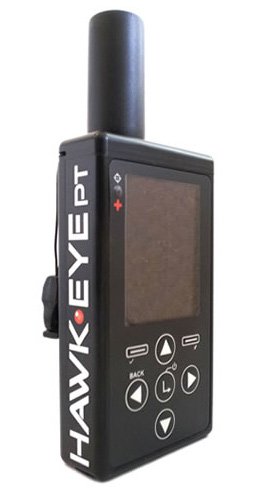

HawkEye PT

FEATURES

Iridium Satellite Personal Tracker and two-way messaging device
Enables two-way messaging through hi-res color LCD screen with a keyboard display
Transmits all data to SkyRouter, Blue Sky Network's interactive web portal that enables immediate access to tracking data on (and communication with) every person and asset around the globe
Dedicated one-touch panic button protected by a flip-guard. Can be used any time, regardless of tracking power status
One-touch notifications of waypoints, check-ins, and other events critical to ensuring the safety of personnel, their global position, and the accurate completion of their tasks
Ultra low power consumption
Automatic position reports (>1200 on one battery charge)
Able to send 300 character email messages
Real time pole-to-pole coverage
Easy battery charging: AC adapter and USB

SPECIFICATIONS

GPS Receiver Type:	1575.42 MHz (L1), 50 channel, C/A code	Accuracy:	2.5 m CEP
Update Rate:	4 Hz	Start-Up Times:	< 1 second hot start; 29 second warm/cold start
Sensitivity:	-160 dBm	Input Voltage Range:	2.7 VDC to 5.5 VDC
Input Nominal Range:	4.0 VDC	Power Consumption:	Less than 40 uA @ 5.0 VDC during standby
Power Input Type:	External DC power or internal battery	Operating Frequency:	1616 to 1616.5 MHz
Link Margin Downlink:	13 dB average	Link Margin Uplink:	7 dB average
Average Power Transmission:	1.0 W	Operating Temperature:	-40° F to 185° F (-40° C to 85° C)
Operating Humidity:	<75% RH

Part Number	Personal Tracker Description:
GKHEPT	see details above

GKHEPT

- HawkEyePT Iridium Satellite Tracker

Price	Condition	Status
$1,295.00	NEW OUTRIGHT	REQUEST LEAD TIME
