Part #: | AA20-431 |
---|---|
Model: | AA20-431 |

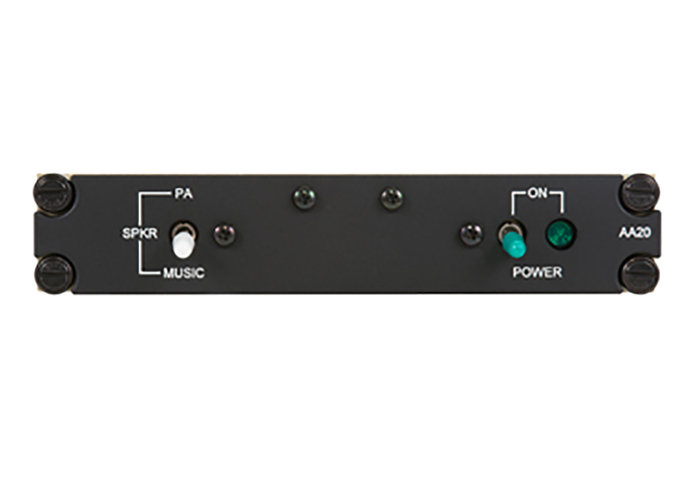

Desc: | Aircraft Public Address / Siren Controller |
OEM: | Canyon Aeroconnect |
NSN: | |
---|---|
Sched-B: | 8518402000 |
ECCN: | 7A994 |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
Install Kit P/N AA35-IKC-1
Weight: | 1.3 lb / 0.61 kg | Dimensions: | 5.75"W x 1.11"H x 6.83"L max (146.05mm x 28.19mm x 173.48mm) (behind faceplate) |
Power Requirements: | 28 to 30VDC, 280 mA idle (2 A max.) | Lamp Power: | 28VDC, 80 mA |
Mounting: | Standard Dzus rails | Finish: | Chassis and cover are 5052-H32 brushed aluminum with chromate conversion. Heat sinks are 6063-T6 aluminum with chromate conversion |
Connectors: | Male filtered 37 pin D-subminiature with Positronics V5 locking tabs | Operating Temperature: | -30 C to + 55 C |
Altitude: | 35,000 ft | Humidity: | > 95% at +50 C |
Vibration/Shock: | DO-160C, Cat. M, N | TSO Compliance: | TSO-C50c, RTCA DO-170 Class II (Applicable to units s/n 2000 and above) |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
