Part #: | AA39-287 |
---|---|
Model: | AA39-287 |

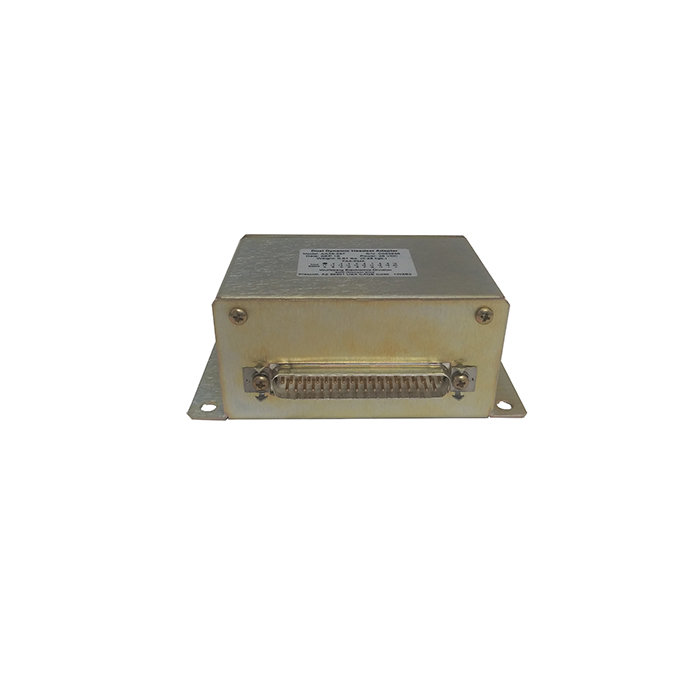

Desc: | Headset Adapter |
OEM: | Canyon Aeroconnect |
NSN: | |
---|---|
Sched-B: | 8518903000 |
ECCN: | 7A994 |
Price | Condition | Status | More Info | |
---|---|---|---|---|
$2,150.00 | NEW OUTRIGHT | REQUEST LEAD TIME |
|
FEATURES
Weight: | 0.61 lbs. (277 g) | DEPTH: | 2.60" (66 mm) max |
width: | 4.50" (114 mm) | height: | 1.75" (45 mm) |
mounting: | Four 10-32 Screws | material/finish: | Chassis & cover are 5052-H32 brushed aluminum with conversion coating finish |
connectors: | One filtered male 37 pin D-subminiature connector with V5 locking tabs | environmental: | DO-160C Env. Cat. [C4D1]-BA[MN]XXXXXXAXXXBTXXXX |
operating temperature: | -40° C to +70° C | survival temerature: | -55° C. to + 85° C |
altitude: | 50,000 feet max | humidity: | 95% @ ≥ RH for 48 hrs |
vibration/shock: | DO-160C Cat. M/N | Temperature Variation : | ±5˚ C/min |
operational: | (Shock & Crash Safety) Operational: 6 g for 11 mS in all axes, Crash Safety (Impulse) 15 g for 11 mS in all axes, Crash Safety (Sustained) 12 g for 3 S in all axes | Mic Bias: | Nominal Bias Voltage: +12 Vdc Maximum Bias Voltage: +16 Vdc Minimum Bias Voltage: +9 Vdc |
Impedance: | 5 Ω ± : 1 : for mic input 300 Ω ± : 10 % for phones input (dependent on load impedance) | input current: | : 10 mA Max. @ Min Bias Voltage |
Circuitry Type: | Balanced input for mic Balanced transformer input for phones | gain: | Min. 1000 or 60 dB for mic amplifier Min. 8.5:1 ratio for phones transformer |
Freq Response: | < 3 dB from 350 Hz to 6000 Hz. for mic channel < 3 dB from 350 Hz to 6000 Hz. for phones channel | Distortion: | < 10% THD @ Rated power output < 3% THD @ 10% Continuous output |
Audio Noise Level: | Without Signal: < -50 dB from rated output | Coupling : | Input to Input: ≤-40 dB from rated output |
Part Number: | Description: |
---|---|
aa39-287 | Dual Military Lo-Z to civil Hi-Z Headset Adapter |
Price | Condition | Status |
---|---|---|
$2,150.00 | NEW OUTRIGHT | REQUEST LEAD TIME |
