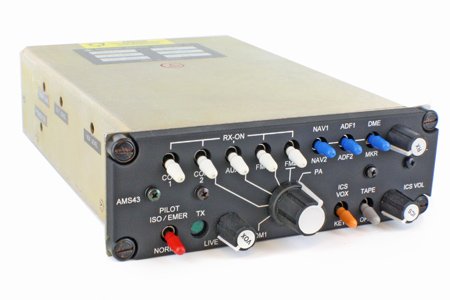

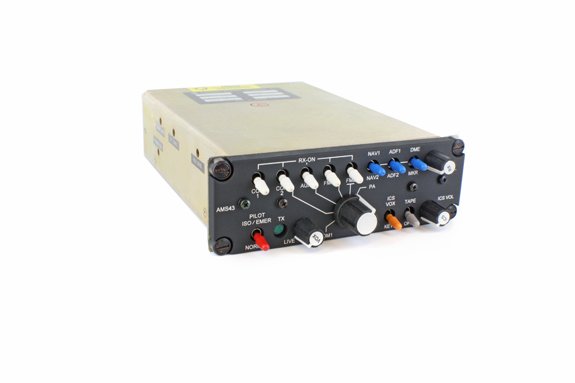

Part #: AMS43

OEM:

Canyon Aeroconnect

Desc:

Audio Controller

Part Number :



AMS-43
FEATURES
  • Audio Controller providing transmit and intercom (ICS) capabilities for pilot and co-pilot plus intercom for 4 passengers
  • Panel controls include master RX volume, ICS volume, and ICS squelch (VOX adjust)
  • ICS Tie line provided to allow multiple controllers to be networked
  • COM 1, COM 2, AUX, FM 1, FM 2, PA, NAV 1/2, ADF 1/2, DME/MKR selections
  • Transmit capability for 5 COMs with Auto-receive function
  • Receiver select switches for first 4 COMs
  • High headphone output with up to 500 mW per channel
  • Intercom supports 2 crew plus 5 passengers
  • Intercom features Active Noise Filtering (ANF) system to achieve best possible intercommunications in noisy aircraft environments
  • Voice activated (VOX) squelch
  • Two direct inputs are provided to accomodate functions such as Rad Alt, GPS Alerts, Low Rotor, or Telephone Ringer
  • Front panel selectable emergency mode switches the pilot's headphones directly to selected radio
  • Three internal alert tone generators: single-tone, two-tone, and timed siren (for DH warning)
  • TSOd version available (AMS43TSO)



SPECIFICATIONS
Temperature Range: -20 to 55C Altitude: 25000 ft.
Weight: 2.3 lbs. Dimensions: 1.88" H x 6.7" D x 5.75" W
Power Requirements: 22-32 VDC at 250 mA typical Lighting: 160 mA/28VDC





Part Number: Description:
  AMS43 Audio Controller





Serial # 4839
Condition SVC
Mods -
Tag Date 02/26/24
Shop Pacific Southwest Instruments
Warranty 6 Months
AMS43
- Audio Controller
Price Condition Status
$3,500.00 SV OUTRIGHT 1 IN STOCK
$2,500.00 SV EXCHANGE 1 IN STOCK
