Part #: | LD12-001 |
---|---|
Model: | LD12-001 |

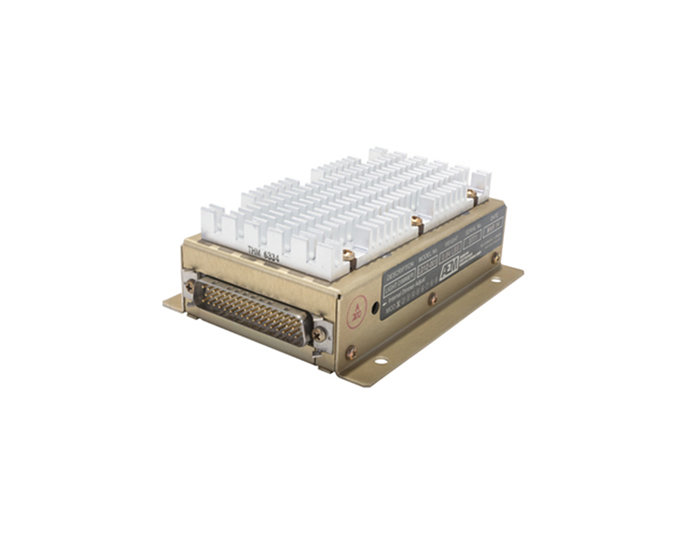

Desc: | Light Dimmer |
OEM: | Canyon Aeroconnect |
NSN: | |
---|---|
Sched-B: | 8518402000 |
ECCN: | 7A994 |
Price | Condition | Status | More Info | |
---|---|---|---|---|
$2,395.00 | NEW OUTRIGHT | DUE IN |
|
FEATURES
SPECIFICATIONS
Weight: | 0.84 lb (380 g) | dimensions: | 1.75 x 5 x 3.95 in (44.5 x 127 x 100.3 mm) |
input power: | 24.8 VDC to 30 VDC, (27.5 VDC nominal) | Input current: | 50 mA, idle (2 A, max) |
Temperature: | -15°C to 70°C, operating, -55°C to 85°C, storage | Altitude: | 50,000 ft |
Humidity: | 95% non-condensing | Vibration: | DO-160C, Cat. B.M.N |
Dimmer: | Active low input: Grounding this pin will cause the internal preset dimmer voltage to be supplied to all lamps | Dimmer GND: | Provides convenient ground return for the dimmer controls |
Lamp Outputs: | Provides up to 50 mA of current to 2 floating lamp circuits and 10 ground keyed circuits for system annunciators Recommended lamps: Type 327, 387, or 388 for 28 Vdc operation @ 40 mA each | Dimmer Out: | Direct connection to dimmer circuit output Provides up to 1 Amp of current |
Part Number: | Description: |
---|---|
LD12-001 | LD12 Remote Mount Light Dimmer |
Price | Condition | Status |
---|---|---|
$2,395.00 | NEW OUTRIGHT | DUE IN |
