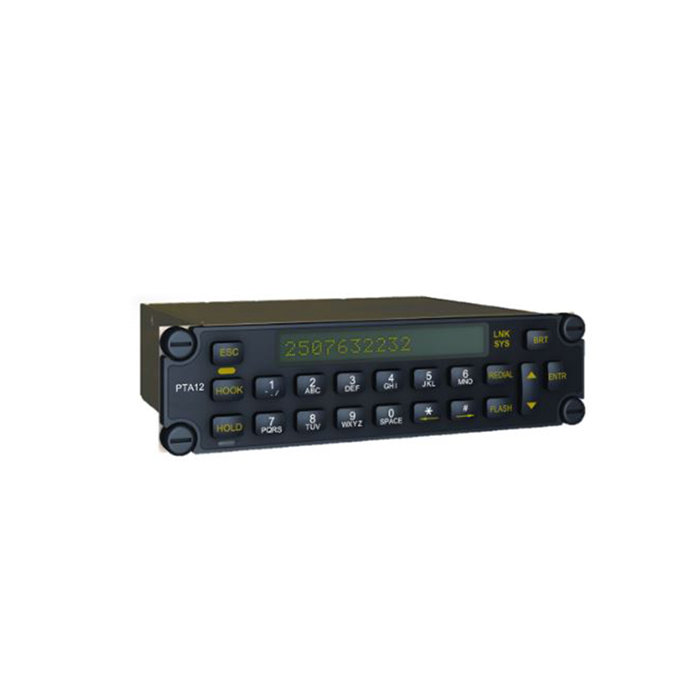

Picture of product PTA12-104
Part #: PTA12-104
Model: PTA12-104
Desc: POTS Telephone Adapter w/Display (Grey)
OEM: Canyon Aeroconnect
Sched-B: 8518402000
ECCN: 7A994
Part Number :
PTA12
FEATURES
  • Compact Dzus mount dialer/adapter telephone interface with full function Touchtone keypad
  • Allows flight crew to access telephone system through aircraft's audio panel maintaining full headset operation
  • *Features 16 digit display and memory capacity for 16 phone numbers (feature not shown above)
  • Provides standard DTMF encoder (Dual Tone Multi Frequency) dialing capabilities by utilizing 2 wire POTS (Plain Old Telephone Service)
  • Includes elastometric keypad, precision crystal controlled tones, reverse and over-voltage protection, RF filtering, and solid state switching
  • High reliabiltu LED backlighting
  • Features several field adjustable settings including mic, sidetone, DTMF and ringer output levels
  • Solid chassis design with aluminum bezel and surface mount technology
  • On/Off Hook function
  • Hold function mutes the mic and phones audio to allow pilots to converse without being overheard on telephone
  • Redial button
  • Flash button for call transfer or call waiting when supported by telephone system
  • Digitally controlled volume via up/down arrows
  • Install Kit P/N PTA12-IKC



SPECIFICATIONS

Weight: 0.5 lbs. Dimensions: 1.13"H x 5.75"W x 4.30"D
Temperature: -20 to 60C Altitude: 50000 ft.
Power Input: 27.5 VDC nominal with reverse and over voltage protection Current: 500 mA
Lighting: 10 mA Phone Output: 0-100 mW @ 600 ohms
Ringer Audio: 0-8 Vrms, 600 ohms Ringer Driver: Pulled to power ground when ringer active
Part Number: Description:
PTA12-000 POTS Telephone Adapter (Black)
PTA12-004 POTS Telephone Adapter (Grey)
PTA12-100 POTS Telephone Adapter with Display (Black)
PTA12-104 POTS Telephone Adapter with Display (Grey)
PTA12-300 POTS Telephone Adapter with Display, NVIS (Black)



Serial # 2143
Condition SV
Mods 1-4
Tag Date 11/15/24
Shop Canyon AeroConnect
Warranty 6 Months
Serial # 2152
Condition SV
Mods 1-4
Tag Date 11/15/24
Shop Canyon AeroConnect
Warranty 6 Months
PTA12-104
- POTS Telephone Adapter w/Display (Grey)
Price Condition Status
$5,950.00 SV OUTRIGHT 2 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
