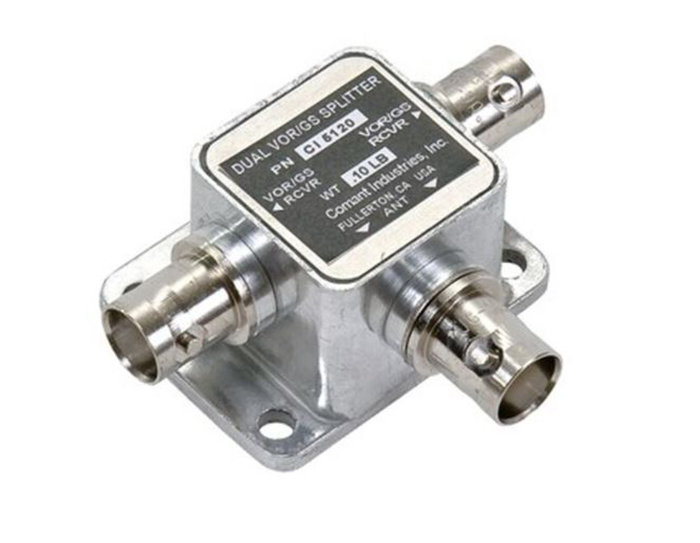

Picture of product CI-5120

Part #: CI-5120

OEM:

Cobham

Desc:

Dual VOR/GS Antenna Splitter (BNC)

Part Number :



CI-5120



FEATURES

  • Splits single coax antenna input into equally proportioned VOR/ LOC/GS outputs
  • Two single input receivers



SPECIFICATIONS

HEIGHT: 0.97 in. Weight: 0.1 lbs.
Frequency: 108-118 MHz & 329-335 MHz Isolation: 20dB Minimum
VSWR: 1.5:1 Maximum Insertion Loss: 1.0 dB Maximum
Impedance: 50 Ohms Aplitude Balance: +/- .50 dB
Phase:  +/- 180 Degrees +/- 5 degrees Power Split: 3 dB
Material: Aluminum Connector BNC: Female



Part Number: Description:
ci-5120 Dual VOR/GS Antenna Splitter (BNC)



CI-5120
- Dual VOR/GS Antenna Splitter (BNC)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
