Model: 331H-3G

Collins Aerospace - Course Indicator

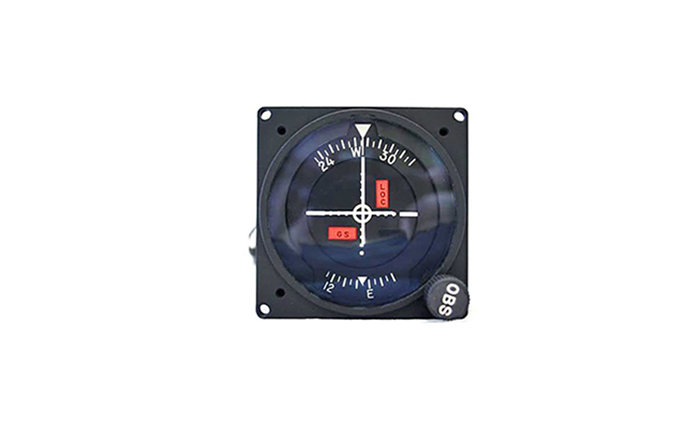

product image
Part Number :


331H-3G
FEATURES
  • Course Selector Indicator providing display of VOR and ILS navigation information
  • Resolver included to provide variable phase shifting for receiver
  • Displays selected course and reciprocal course, deviation from selected VOR or localizer course, VOR/localizer flag indication, VOR to/from indication, glideslope deviation, and glideslope flag
  • Models available with factory installed EZ-ORZ compatibility choke
  • Model available with 28V lighting (see table below)



SPECIFICATIONS
Dimensions: 3-1/4" square case Weight: 1.6 lbs.
VOR/LOC: Standard 150-ua meter movement for 5 dots needle deflection VOR/LOC D-C Resistance: 1000ohm +-3 percent at 25 deg. C
GS: Standard 150-ua meter movement for 5 dots needle deflection GS D-C Resistance: 1000ohm +-3 percent at 25 deg. C
TO/FROM: Meter movement is energized with a d-c current of 200 ua +-20% To/From D-C Resistance: 200ohm +-15 percent at 25 deg. C
VOR/LOC Flag: LOC flag becomes and remains visible with application of current less than 125 to 175 ua VOR/LOC Flag D-C Resistance: 1000ohm +-3% at 25 deg. C
GS Flag: GS flag becomes and remains visible with application of current less than 125 to 175 ua VOR/LOC Flag D-C Resistance: 1000ohm +-3% at 25 deg. C
Resolver (-000): Omnirange zeroed for 30 Hz at 300 degrees Resolver (-011/014): Omnirange zeroed and electrically zeroed for 30 Hz at 300 degrees
Temperature: -40C to +55C Altitude: up to +40000 ft.
Part NumberCourse Indicator Description:
522-3306-000 With resolver as described above
522-3306-011 With resolver as described above
522-3306-014 With resolver as described above and 28V lighting
