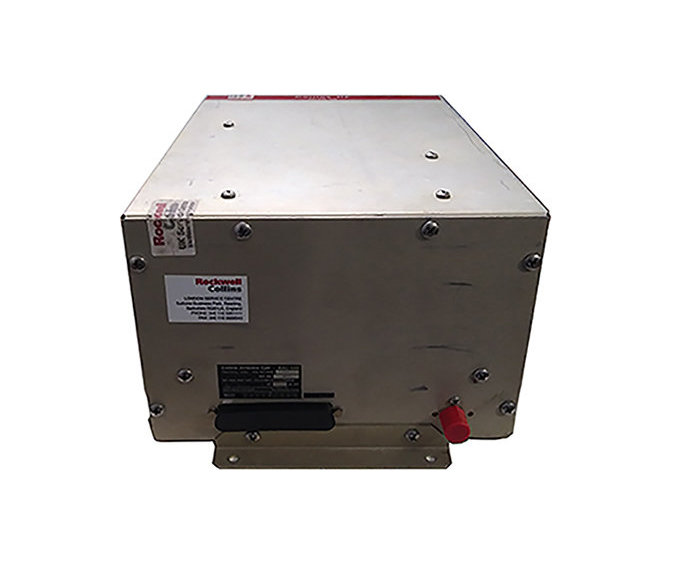

product image

Part #: 622-6668-002

Model: AAC-220




Collins Aerospace


HF Antenna Coupler

Part Number :



  • Antenna coupler used in HF-220/230 HF Communications System
  • Automatically matches the impedence of shunt antennas to 50-ohm output of the PWR-200/230 power amplifier
  • Capable of tuning shunt antennas over frequency range of 2-29.999 MHz



Power REQUIREMENT: 27.5 vdc AT 0.1 A (standby), at 4A (tune) max TUNING TIME: 10 s nom, 30 s max
POWER RATING: Continuous operation at 100-W pep, single sideband MODULATION: Operates with any type modulation
Dimensions: 7.73 " W x 5.3" H x 13.35" L TEMPERATURE: -50 to 70C (continuous)
Weight: 10.0 lbs. ALTITUDE: 35000 FThumi
HUMIDITY: 95% FOR 240 h (per DO-160A paragraph 6.3) SHOCK: 6g operational, 15g crash safety
Part Number:  Description:
622-6668-001 HF Antenna coupler w/ binding post antenna connector for shunt antennas
622-6668-002 HF Antenna coupler w/ HN type antenna connector on rear panel


Serial # DBVL
Condition SV
Mods 1
Tag Date 03/11/20
Shop Southeast Aerospace Inc.
Warranty 6 Months
- HF Antenna Coupler

NSN: 5985-01-558-9706

Price Condition Status

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact

The issue of HF antenna installation on an aircraft can be generalized with 2 considerations:
  • Type of aircraft
  • Location of antenna coupler
Since there are numerous types of aircraft with varying installation requirements, there are several HF antenna configurations. Whatever the case may be, the antenna is a major factor for maximum performance of the HF system.

More or less, HF antenna configurations fall into four categories:

“V” and long wire configuration

The “V” and long wire antenna configuration is the optimal HF antenna configuration. It provides consistent performance and efficiency. This configuration should not be used on very high speed fixed wing aircraftand helicopters.

The wing “V” configuration is an effective HF antenna configuration for slow and moderate speed aircraft. This configuration provides an omnidirectional radiation Pattern. It has has the disadvantages of high drag and on low wing aircraft is prone to being walked into.

Wing Tip V Antenna

The inverted “V” antenna is recommended when a wing "V" is not practical and the antenna coupler is mounted in the back of the aircraft. The inverted “V” antenna will produce maximum signal strength off the side of the aircraft and provide good efficiency at most frequencies. The inverted “V” produces a moderate amount of drag.

Inverted V Antenna

The long wire antenna is used when the HF coupler is located in the forward part of the aircraft. The long wire provides maximum signal radiation off the sides of the aircraft and exhibit good efficiency even at the lower frequencies. Nulls in signal strength may be experienced off the nose and tail of the aircraft.

Long Wire Antenna

Short grounded wire configuration

Short grounded wire antennas are primarily used on higher speed and/or high altitude aircraft. The short wire antenna have minimum drag and do not develop as high of RF voltages as the longer wire antennas. However the efficiency of the short antenna will be lower, especially at the low frequencies.

Short Wire Antenna

Shunt configuration

There a generally 2 types of shunt antennas. A towel bar style includes a rod or tube mounted on the airframe usually suited for helicopters.

Shunt Antenna - Towel Bar Style

The other type of shunt antenna is designed by the aircraft manufacturer as a part of the airframe structure on the leading edge of the vertical stabilizer. Leading edge antennas are ideal for Larger, high altitude jet aircraft.

Shunt Antenna - Aircraft

Probe configuration

Probe HF antennas are ideal on aircraft where a long antenna is not suitable. It should be noted that probe antennas provide poor efficiency at lower frequencies as is the case with most short style antennas.

Probe Antenna
