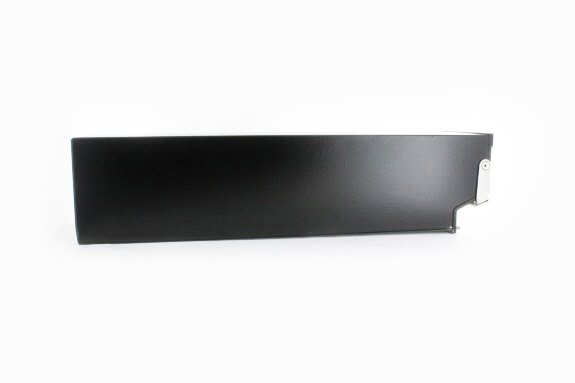

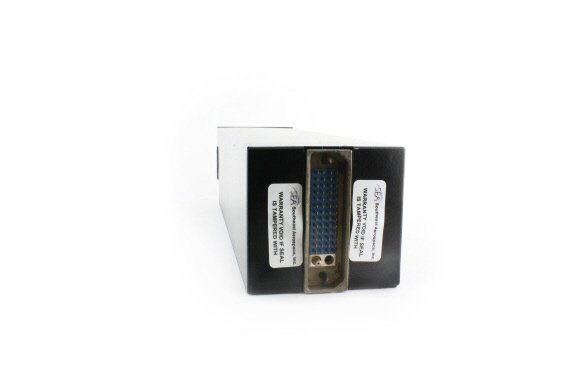

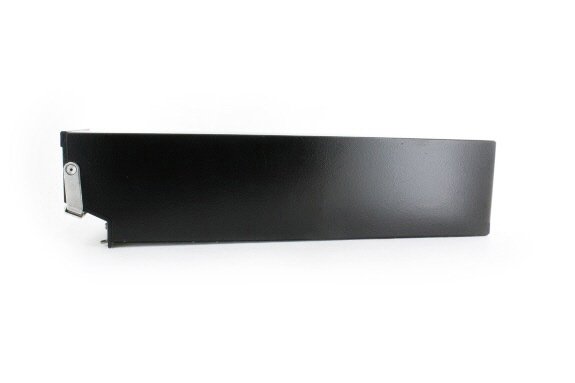

360 degree product image of ADF-60A
360
360 image holder for ADF-60A
360 degree product image thumbnail of ADF-60A
360
Thumbnail product image of ADF-60A

Part #: 622-2362-001

Model: ADF-60A

NSN:

5826-01-125-1023

OEM:

Collins Aerospace

Desc:

ADF Receiver
Part Number :


ADF-60A



FEATURES

  • Remote mount ADF receiver
  • Typically used with ANT-60A/B combined sense/loop antennas, either 614L-11/12/13 analog controls or CTL-60, CTL-62 (w/ CAD-62) digital controls, and RMI-30 indicators as a system
  • Completely solid-state, no rotating machinery
  • Coherent detection to demodulate bearing signal for reduced bearing errors and safety hazards caused by adjacent channel signals
  • Automatic band switching for ease of frequency selection over entire operating range
  • Audio muting and pointer stowage with unusable signal
  • Digital tuning combined with single crystal frequency synthesizer
  • Digitally stabilized frequency synthesizer
  • Crystal filter selectivity
  • Modular construction



SPECIFICATIONS

TSO: C41c, Env CAT/AD/A/JNG/AAAXXXXXX, class A selectivity RTCA document: DO-138, DO-142
Weight: 4.2 lbs. Temperature: -54 to +55 C (continuous)
Altitude: To 60000 ft. Power Requirements: 27.5 V dc, 600 mA
Frequency control: BCD digital, four wires per decade Operational modes: ANT, ADF, TONE/ CW
Types or reception: AM,CW,MCW Frequency range: 190 kHz to 1749.5 kHz in 6 bands
Tuning increments: 0.5 kHz Bandwidth: 2.8 kHz at 6 dB nominal
Spurious response: At least 80 dB below desired response Audio output: 100 mW into 600 ohm load
CW ident: 1000-Hz tone Sensitivity: Per RTCA paper DO-142
Part Number: Description:
622-2362-001 ADF Receiver



Serial # 21862
Condition OH
Mods 1-12
Tag Date 02/27/23
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 2189
Condition OH
Mods 1-3,8
Tag Date 02/27/23
Shop Southeast Aerospace Inc.
Warranty 6 Months
622-2362-001
- ADF Receiver

NSN: 5826-01-125-1023

Price Condition Status
$850.00 OH OUTRIGHT 2 IN STOCK
