Part #: 622-2873-001
Model: ADF-60B
ADF-60B

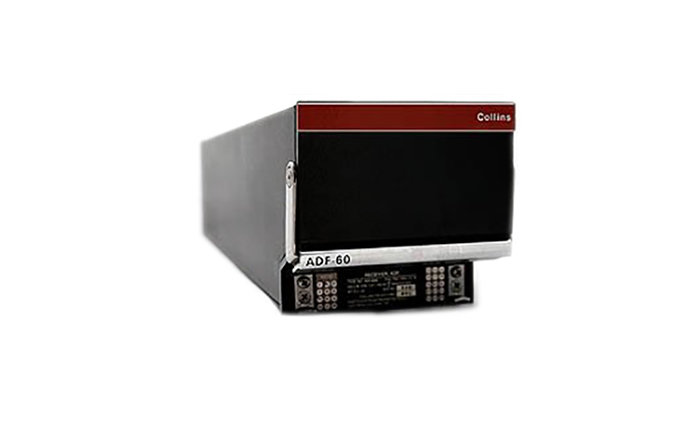

Image shown is an ADF-60A due to similarities in appearance between units.
FEATURES
- Remote mount ADF receiver
- Typically used with ANT-60A/B combined sense/loop antennas, either 614L-11/12/13 analog controls or CTL-60, CTL-62 (w/ CAD-62) digital controls, and RMI-36 indicators as a system
- DC sin/cos RMI output only
- Completely solid-state, no rotating machinery
- Coherent detection to demodulate bearing signal for reduced bearing errors and safety hazards caused by adjacent channel signals
- Automatic band switching for ease of frequency selection over entire operating range
- Audio muting and pointer stowage with unusable signal
- Digital tuning combined with single crystal frequency synthesizer
- Digitally stabilized frequency synthesizer
- Crystal filter selectivity
- Modular construction
- Same as ADF-60A but does not have 3-wire synchro output for use with 3-wire RMI units
SPECIFICATIONS
| TSO: | C41c, Env CAT/AD/A/JNG/AAAXXXXXX, class A selectivity | RTCA document: | DO-138, DO-142 |
| Weight: | 4.2 lbs. | Temperature: | -54 to +55 C (continuous) |
| Altitude: | To 60000 ft. | Power Requirements: | 27.5 V dc, 600 mA |
| Frequency control: | BCD digital, four wires per decade | Operational modes: | ANT, ADF, TONE/ CW |
| Types or reception: | AM,CW,MCW | Frequency range: | 190 kHz to 1749.5 kHz in 6 bands |
| Tuning increments: | 0.5 kHz | Bandwidth: | 2.8 kHz at 6 dB nominal |
| Spurious response: | At least 80 dB below desired response | Audio output: | 100 mW into 600 ohm load |
| CW ident: | 1000-Hz tone | Sensitivity: | Per RTCA paper DO-142 |
| Part Number | ADF Receiver Description: |
|---|---|
| 622-2873-001 | see details above |
622-2873-001
- ADF Receiver
NSN: 5825-01-335-5226
| Price | Condition | Delivery |
|---|---|---|
| CALL OR RFQ | OH OUTRIGHT | CALL OR RFQ |
| CALL OR RFQ | OH EXCHANGE | CALL OR RFQ |
SEA Repair Capabilities: Yes
