Model: CTL-32G

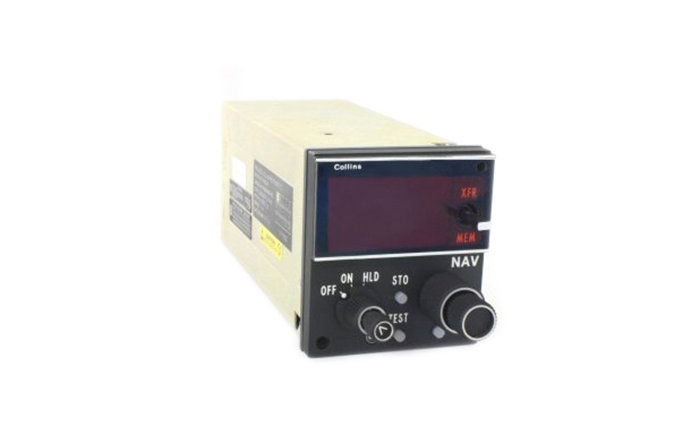

Collins Aerospace - G7632-101, Nav Control
Part Number :


CTL-32G
FEATURES
  • Digital Display Navigation Control designed to simultaneously tune the VIR-32, and DME-42 radios
  • CTL-32G controls are direct fit and form replacement for existing original CTL-32 Controls
  • CTL-32G controls offer new design incorporating all digital architecture and LED displays which enhance reliability and extend performance
  • CTL-32G controls include lighting bus that can be strapped for either 5 or 28 volt applications
  • Can be configured to permit tuning DME-42 to nonpaired military TACAN channels in range of 133.33-135.95 MHz
  • Serial tune control unit
  • Provides active and preset frequency display
  • Four frequency memory storage beside active and preset frequency
  • Models available with black or gray bezel (see table below)
  • Models available with variations of ON/OFF/HOLD/NORM selection and Volume control (see table below)
SPECIFICATIONS
Weight: 1.2 lbs. Dimensions: 2.375"W x 2.625"H x 7.52"L
TSO: C37c, C34d, C36d, C38e, C40b, C66b, C41c, C74e RTCA Document: DO-160A
EUROCAE: MPS/WG 8/1/71; ED-14A DEUTSCHE BUNDESPOST FTZ: A446R2010
Environmental: DO-160A categoreis /A2C1/B/PKS/ EXXXXXZ/BZ/AZZ EUROCAE ED-14A Temperature: -30 to +70C
Altitude: 35000 ft. max. Shock: 6 g operational
Power Requirement: 27V dc (16-32) at 0.25A Lighting Power: 5V ac/dc. 350mA or 28Vdc, 100 mA
Lighting Color: Blue-white Display Type: Gas discharge
Brightness Control: Automatic or external potentiometer Electrical Input/Output: EIA RS-422A
Input/Output Format: Commercial Standard Digital Bus (CSDB) Frequency Range: 108.000-117.975MHz (normal); strap option adds 133.00-135.95MHz
Part NumberNavigation Control Description:
822-2179-001 5 volt lighting, gray panel, OFF-ON controls, NO volume control; Gables P/N G7632-101; Replaces CTL-32 P/N 622-6521-001
822-2179-005 5 volt lighting, gray panel, OFF-ON controls, WITH volume control; Gables P/N G7632-103; Replaces CTL-32 P/N 622-6521-005
822-2179-007 5 volt lighting, black panel, OFF-ON controls, WITH volume control; Gables P/N G7632-104; Replaces CTL-32 P/N 622-6521-007
822-2179-009 5 volt lighting, gray panel, OFF-ON-HOLD controls, NO volume control; Gables P/N G7632-105; Replaces CTL-32 P/N 622-6521-009
822-2179-011 5 volt lighting, black panel, OFF-ON-HOLD controls, NO volume control; Gables P/N G7632-106; Replaces CTL-32 P/N 622-6521-011
822-2179-013 5 volt lighting, gray panel, OFF-ON-HOLD controls, WITH volume control; Gables P/N G7632-107; Replaces CTL-32 P/N 622-6521-013
822-2179-015 5 volt lighting, black panel, OFF-ON-HOLD controls, WITH volume control; Gables P/N G7632-108; Replaces CTL-32 P/N 622-6521-015
822-2179-025 5 volt lighting, gray panel, NORM-HOLD controls, NO volume control; Gables P/N G7632-115; Replaces CTL-32 P/N 622-6521-025
