Part #:

Model: DPU-84

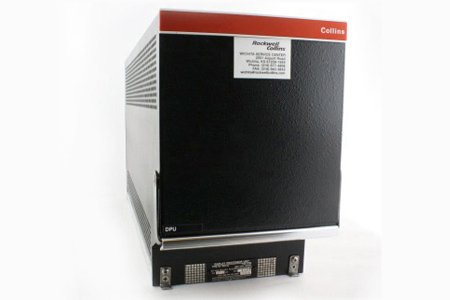

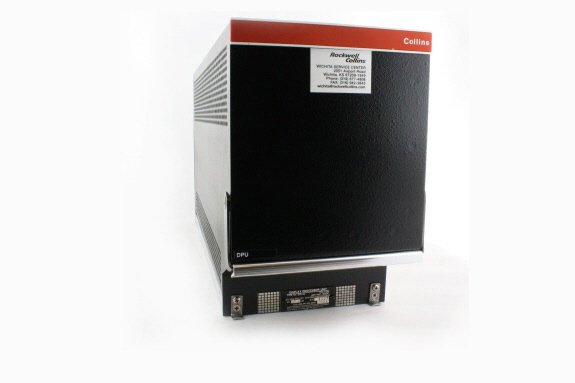

Collins Aerospace - Display Processor Unit
Part Number :


DPU-84
FEATURES
  • Provides sensor input processing and switching, necessary deflection and video signals, and power for the EFD-84 Displays used in the EFIS-84 System
  • Normally drives two Electronic Flight Displays (EFD) with different deflection and video signals (e.g. EADI/EHSI)
  • Provides backup drive for cross-side EFDs in the event of a failure of the cross-side DPU
  • Provides high temperature warning output that can drive external annunciator
  • Version with GPS Approach capability (-004)



SPECIFICATIONS
FAA TSO: C3b, C4c, C6c, C34c, C36c, C40b, C52a Environmental: F2/A/MNO/ XXXXXXAZAAA
Weight: 14.1 lbs. Size: 5.08"W x 7.67"H x 14.65"L
Power Input: 2.4 amp typical, 3.7 max Cooling: Forced-air cooling required
Part NumberDisplay Processor Unit Description:
622-9682-001 No info available
622-9682-002 Original production version
622-9682-003 No information available
622-9682-004 Current production version with GPS approach capability


PLEASE NOTE:
THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



622-9682-004
- Display Processor Unit
Price Condition Delivery
$3,950.00 SV EXCHANGE IN STOCK
$6,750.00 SV OUTRIGHT IN STOCK

SEA Repair Capabilities: No

622-9682-001
- Display Processor Unit
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9682-002
- Display Processor Unit
Price Condition Delivery
CALL OR RFQ SV EXCHANGE RFQ
CALL OR RFQ SV OUTRIGHT RFQ
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9682-003
- Display Processor Unit
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9684-003
- Multifunction Processor Unit
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Southeast Aerospace exchanges are based on the return of an undamaged, economically repairable core unit with identical part number as the unit shipped to the customer. An "economically repairable" core is defined as one where the cost to repair/overhaul (or Repair Cap) does not exceed 80% of the original SV/OH exchange price billed. Should the Repair Cap exceed 80%, the customer will be billed the additional amount. In the event this amount exceeds the Outright Price for the unit, the customer would only be billed the difference between the Outright Price and SV/OH Exchange Price with the core returned as-is to the customer.

Here is an example of such a transaction:

$1000 Exchange Price charged to customer
$1000 x .8 = $800 Maximum Allowable core repair charge or Repair Cap

$2000 Cost to repair core unit
- $800 Less Core repair cap
---------
$1200 Additional billing amount.

2200.00 Total Cost of transaction

Please Note:
SEA offers exchange on new items as well. However, repair cap as indicated above is still based on SV/OH exchange price.

Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 80% of the original exchange price. That is, it cannot cost SEA more than 80% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.
