Model: FD-112V

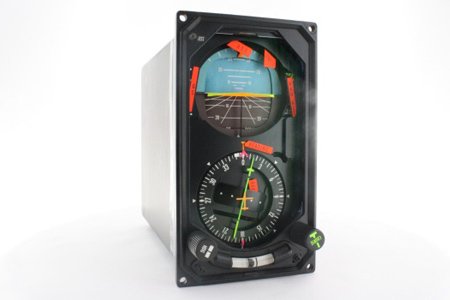

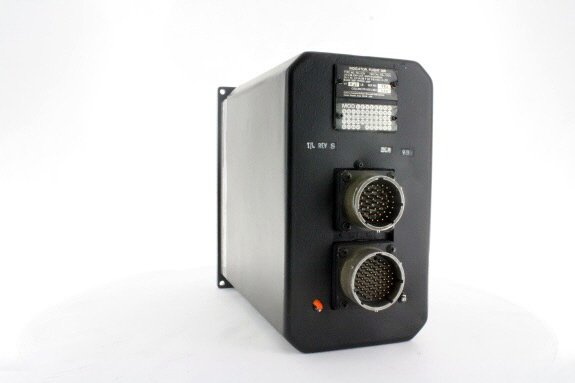

Collins Aerospace - Flight Director Indicator
Part Number :


FD-112V
FEATURES
  • Multipurpose indicator displaying aircraft basic attitude, pitch and roll commands, heading and bearing information
  • Displays ADF, VOR, or localizer navigation, glideslope and localizer deviation
  • Warning flags to indicate system malfunctions (includes heading, glideslope, attitude, computer, NAV, radio altitude - optional)
  • Information for unit is strictly derived from flight control system components
  • Servo driven compass card provides aircraft heading display in response to 3-wire data from remote compass system
  • VOR/LOC and Glideslope display are derived from signals from compatible navigation receivers
  • Models available with radio altitude pointer and altitude scale providing radio altitude display derived from compatible radio altitude receiver (see table below)
  • Bearing pointer provides display of bearing information from other nav sources such as ADF or VOR
  • Test pushbutton provided as means for testing attitde servos and attitude flag
  • Course knob positions course arrow to desired radial for VOR navigation or runway heading for localizer approach
  • Heading knob positions heading bug to desired heading
  • Models available with black or gray exterior finish (see table below)
  • Models available with stationary roll attitude scale with moving index (see table below)
  • Models avaialble with 5 or 28 V lighting (see table below)
SPECIFICATIONS
Dimensions: 4.175"W x 7.375"H x 7.5"L Weight: 8.5 lbs. approx.
Temperature: -15 to 71C operating Altitude: up to 25000 ft.
Inst. Power Requirements: +28 VDC +-20%, 0.85A max. Heading Power Requirements: 26 VAC +-15%, 400Hz +-10%, 1.0 VA max.
Attitude Power Requirements: 26 VAC +-15%, 400Hz +-10%, 10.0 VA max. Bearing Power Requirements: 26 VAC +-15%, 400Hz +-10%, 1.0 VA max.
Lighting Power: +28 VDC +-20%, 0.1A max or 28VAC +-20%, 400Hz +-10%, 2.7 VA max (-001 thru -006 units) +5 VDC or 5 VAC, 400Hz, +-10%, 2.3 VA max (-007 and -008 units) TSO: C52a, C4c, C6c
Part NumberFlight Director Description:
622-1352-001 Black exterior, 28V lighting, no radio altitude display or warning flag
622-1352-002 Black exterior, 28V lighting, includes radio altitude display and warning flag
622-1352-003 Gray exterior, 28V lighting, no radio altitude display or warning flag
622-1352-004 Gray exterior, 28V lighting, includes radio altitude display and warning flag
622-1352-005 Black exterior, 28V lighting, no radio altitude display or warning flag, includes stationary roll attitude scale
622-1352-006 Black exterior, 28V lighting, includes radio altitude display or warning flag, includes stationary roll attitude scale
622-1352-007 Black exterior, 5V lighting, no radio altitude display or warning flag
622-1352-008 Black exterior, 5V lighting, includes radio altitude display and warning flag
