Part #: 622-2883-001

Model: PWR-200

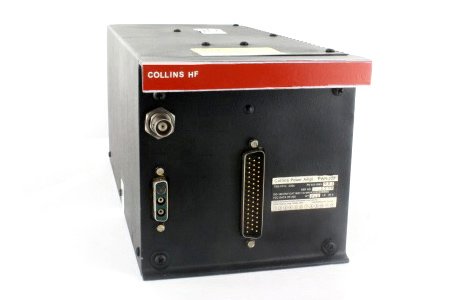

Collins Aerospace - HF Power Amplifier
Part Number :


PWR-200
FEATURES
  • Power amplifier used in HF-220 HF System
  • 100-W pep output with an average of 25 watts RF output
  • Remote mounted
  • Self-protecting against infinite vswr, thermal overload, and excessive input current
  • ALC (automatic level control) sensors and outputs prevent overdrive conditions from damaging unit
  • Solid-state



SPECIFICATIONS
Dimensions: 5.00"W x 5.040"H x 11.770"L Weight: 7.0 lb.
FAA TSO: C31c, C32c RTCA: DO-160
Input voltage: 27.5 V dc +-10% Input Drive Level: 65 mW pep max to drive output to 100 W pep (+1.5 dB)
Input Impedance: 50 ohm resistive within 1.5 to 1 vswr Duty Cycle: 2.5 minutes (receive), 30 seconds (transmit) in all modes
Tuning Time: 1 second max Harmonic Attenuation: 63 dB min below mean power
622-2883-001HF Power Amplifier Description:
622-2883-001 see features above



622-2883-001
- HF Power Amplifier
Price Condition Delivery
$1,450.00 SV OUTRIGHT RFQ

SEA Repair Capabilities: Yes
