Part #: 622-6667-001

Model: PWR-230

Collins Aerospace - HF Power Amplifier
Part Number :


PWR-230
FEATURES

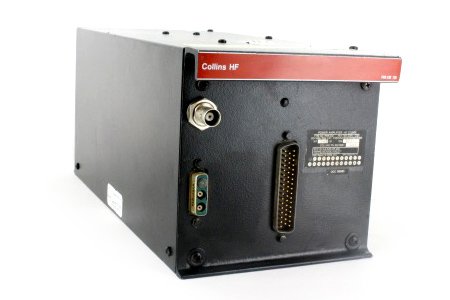

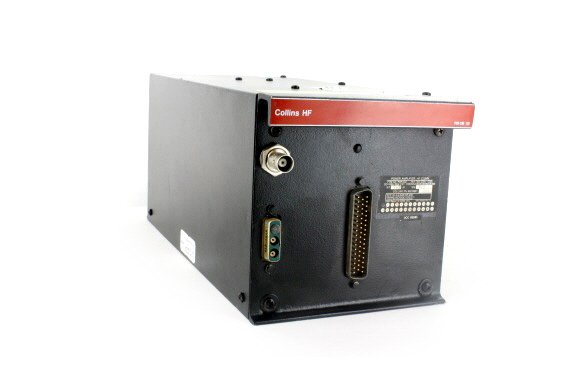

  • Power amplifier used in HF-230 HF System
  • 100-W pep output
  • Remote mounted
SPECIFICATIONS
TSO: C31c, C32c RTCA: DO-160A
FCC: Type accepted, parts 83,87 Env. Categories: F3/B/MN/XXXXXXBBBBB
Dimensions: 5.0"W x 5.04"H x 11.70"L Weight: 7.25 lb.
Temperature: -55 to +55C (continuous) Altitude: 55000 ft.
Power Output: 100 watts pep, 25 watts average +-1.5 dB into a 50-ohm load Input Impedance: 50 ohms resistive within a 1.5:1 vswr
Warmup Time: None Input Drive Level: Not more than 65 mW pep required to drive PWR-230 to 100 W pep +-1.5 dB
Tuning Operation: Output limited to 20 W during tune cycle Harmonic Attenuation: 63-dB minimum below mean power
Tuning Time: 1 second maximum Mismatched Load: PWR-230 is protected by internal circuits against high vswr mismatches
Part NumberHF Power Amplifier Description::
622-6667-001 see features above



622-6667-001
- HF Power Amplifier

NSN: 5895-01-306-4529

Price Condition Delivery
$5,250.00 OH OUTRIGHT VIEW STOCK
$2,150.00 OH EXCHANGE VIEW STOCK

SEA Repair Capabilities: Yes
