Part #: 622-1270-001

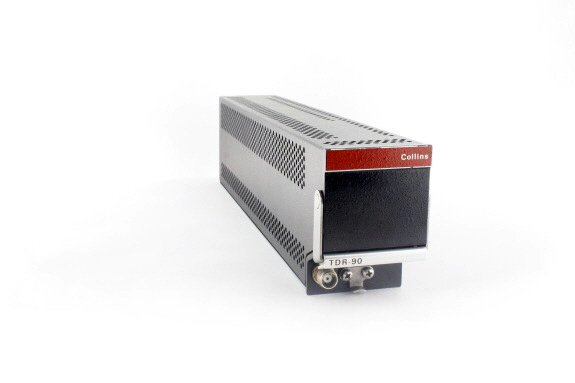

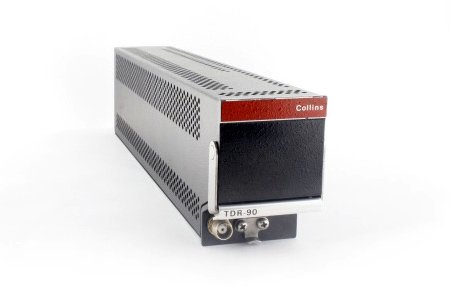

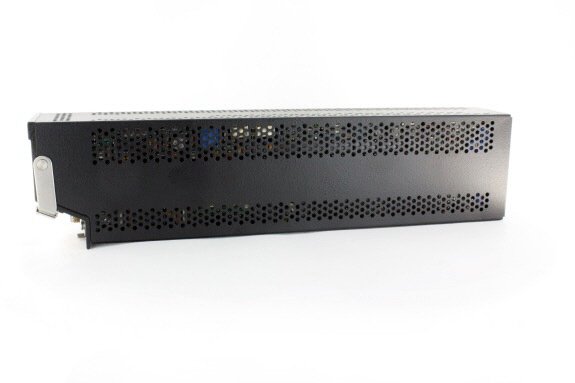

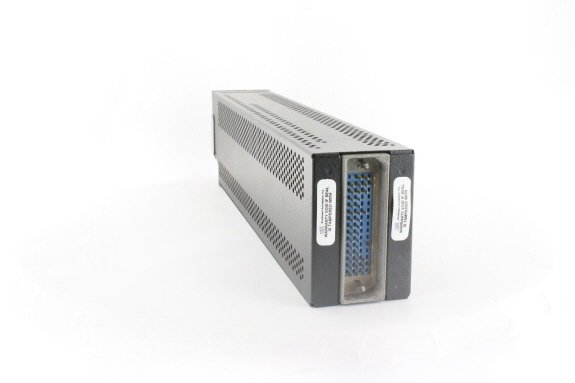

Model: TDR-90

Collins Aerospace - ATC Transponder
Part Number :
Collins Logo

  • ATC Transponder providing identification of aircraft on ground controller's plan position indicator
  • Provides Modes A and C operation when used with altitude digitizer
  • Typically used with either CTL-90 digital control or 613L-3 analog control (available in single and dual controls)
  • Can also be controlled with CTL-92 Proline II control when used with CAD-62 adapter
  • Short low-profile design
  • Lightweight
Dimensions: 2.42"W x 3.5"H x 13.71"L Weight: 3.5 lbs.
FAA TSO: C74b or C74c, Class 1A FCC Rules: Part 87
RTCA: DO-138 (Env. Cat /AD/A/JNG/AAAEXXXXX Temperature: -54 to +55 C (continuous); +71C for 30 minutes
Altitude: 45000 ft. max. (operation) Shock: 6g, 6 postions (11 +-2 ms duration) for operation
Power Source: 27.5 V dc +-20%, 1.9 A max at 1% duty cycle Power Requirements: Standby: 25W; Operation at 1% transmitter duty factor: 40W
Peak Pulse Power: 250 to 400 watts (325 nominal) Sensitivity: -72 to -80 dBm
Bandwidth: 6 mHz at 3 dB down, 50 MHz at 60 dB down Frequency Stability: +-3 mHz
Part NumberATC Transponder Description:
622-1270-001 see features above


- ATC Transponder

NSN: 5895-01-015-3810

Price Condition Delivery

SEA Repair Capabilities: Yes

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact

The first revision of the Collins TDR-90 manual is dated October 1973.

Yes, anytime a transponder is removed or replaced an altitude correlation between what the transponder is reporting and what is displayed on the altimeter needs to be performed. This is outlined in FAA CFR Part 91.413. This regulation indicates that following any installation or maintenance of a transponder where data correspondence error could be introduced, the integrated system has been tested, inspected, and found to comply with paragraph (c), appendix E. Furthermore, these references indicate that an integration test between the altitude reporting equipment and transponder system must be conducted.

For complete information, please refer to these FAA regulations or contact Southeast Aerospace Tech Support team at
Southeast Aerospace exchanges are based on the return of an undamaged, economically repairable core unit with identical part number as the unit shipped to the customer. An "economically repairable" core is defined as one where the cost to repair/overhaul (or Repair Cap) does not exceed 80% of the original SV/OH exchange price billed. Should the Repair Cap exceed 80%, the customer will be billed the additional amount. In the event this amount exceeds the Outright Price for the unit, the customer would only be billed the difference between the Outright Price and SV/OH Exchange Price with the core returned as-is to the customer.

Here is an example of such a transaction:

$1000 Exchange Price charged to customer
$1000 x .8 = $800 Maximum Allowable core repair charge or Repair Cap

$2000 Cost to repair core unit
- $800 Less Core repair cap
$1200 Additional billing amount.

2200.00 Total Cost of transaction

Please Note:
SEA offers exchange on new items as well. However, repair cap as indicated above is still based on SV/OH exchange price.

Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 80% of the original exchange price. That is, it cannot cost SEA more than 80% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.

For more information, please refer to these other Exchange FAQs

Collins Proline I began production in the early to mid 1970s and was very common in many business aircraft in the 1970s and early 1980s. The original instruction manuals for most of the units is dated in 1974. Although production of the Proline continued through the 1980s, it can be assumed that a Proline I unit is 20-30 years old on average.
