Part #:

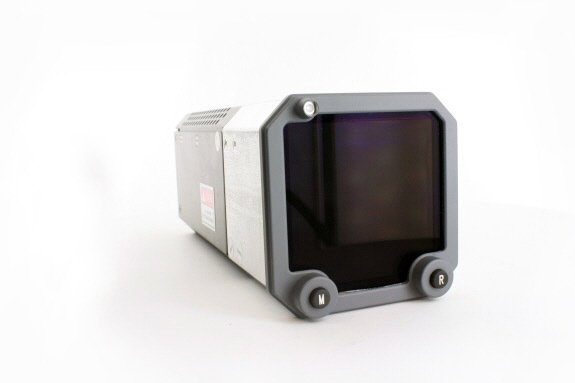

Model: TVI-920

OEM:

Collins Aerospace

Desc:

TCAS IND/VSI

Part Number :


TVI-920
FEATURES
  • VSI/TA/RA Indicator is an active matrix liquid crystal display
  • Digital VS Input format ARINC 419/429
  • Full color flat panel LCD display
  • Brightness is related to the voltage applied to the Display Dimming Input
  • Optimized for wide viewing angles and high contrast
  • Displays conventional vertical speed functions along with traffic information and resolution advisories
  • Accepts all common electric interfaces for the vertical speed functions
  • Has an air pressure sensor for direct connection to the aircraft static system
  • Standard 3" (3ATI) aircraft instrument case
  • Does not require forced-air cooling - it is convection cooled
  • An DC-powered version, TVI-920D is also available

* 28 VDC Version Available, TVI-920D (P/N: 622-9728-XXX)

SPECIFICATIONS
FAA TSO: C-8c, C113 Environmental: DO-160BD2F1CB/PKS/E1 XXXXXZEAEZZZK
EUROCAE: ED-14B Software: DO-178A Level 1
Package: 3 ATI-S (ARINC 408A) Dimensions: 3.26"H x 3.26"W x 7.5"L
Weight: 3.5 lbs Cooling: Natural Convection
Temperature: -15 to +71°C; -55 to +85°C (storage) Altitude: -1,000 to +45,000 ft
Power Requirements: 115 Vac, 400 Hz, 15 W max or 130 mA Lighting: 0 to 5 Vac, 400 Hz, 5 mW max or 1 mA
Part NumberIndicator Description:
622-9353-003 No Button, Brown, Interchangeable w/-005
622-9353-005 No Button, Brown, Interchangeable w/-003
622-9353-011 No Button, Black, May be replaced w/-113
622-9353-013 No Button, Black, May be replaced w/-113, Interchangeable w/-015
622-9353-015 No Button, Black, Interchangeable w/-013
622-9353-021 No Button, Gray, May be replaced w/-123
622-9353-023  No Button, Gray, May be replaced w/-123, Interchangeable w/-025
622-9353-025 No Button, Gray, Interchangeable w/-023
622-9353-111 No Button, Black, May be replaced w/-113
622-9353-113 No Button, Black, Replacement for -011, -013, -111, Interchangeable w/-115
622-9353-115 No Button, Black, Interchangeable w/-113
622-9353-121 No Button, Gray, May be replaced by -123
622-9353-123 No Button, Gray, Replacement for -021, -023, -121, Interchangeable w/-125
622-9353-125 No Button, Gray, Interchangeable w/-123
622-9353-211 Mode & Range Buttons, Black, May be replaced by -413
622-9353-213 Mode & Range Buttons, Black, May be replaced by -413, Interchangeable w/-215
622-9353-215 Mode & Range Buttons, Black, Interchangeable w/-213
622-9353-221 Mode & Range Buttons, Gray, May be replaced by -423
622-9353-223 Mode & Range Buttons, Gray, May be replaced by -423, Interchangeable w/-225
622-9353-225 Mode & Range Buttons, Gray, Interchangeable w/-223
622-9353-311 Above/Below & Range Buttons, Black, May be replaced by -313
622-9353-313 Above/Below & Range Buttons, Black, Replacement for -311, Interchangeable w/315
622-9353-315 Above/Below & Range Buttons, Black, Interchangeable w/-313
622-9353-321 Above/Below & Range Buttons, Gray, May be replaced by -323
622-9353-323 Above/Below & Range Buttons, Gray, Replacement for -321, Interchangeable w/-325
622-9353-325 Above/Below & Range Buttons, Gray, Interchangeable w/-323
622-9353-403 Mode & Range Buttons, Brown, Interchangeable w/-405
622-9353-405 Mode & Range Buttons, Brown, Interchangeable w/-403
622-9353-411 Mode & Range Buttons, Black, May be replaced by -413
622-9353-413 Mode & Range Buttons, Black, Replacement for -211, -213, -411
622-9353-415 Mode & Range Buttons, Black, Interchangeable w/-413
622-9353-421 Mode & Range Buttons, Gray, May be replaced by -423
622-9353-423 Mode & Range Buttons, Gary, Replacement for -221, -223, -421, Interchangeable w/-425
622-9353-425 Mode & Range Buttons, Gray, Interchangeable w/-423
622-9353-623 Mode & Range Buttons, Gray, Interchangeable w/-625
622-9353-625 Mode & Range Buttons, Gray, Interchangeable w/-623



622-9353-005
- TCAS IIVSI/RA/TA Ind.
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
622-9353-021
- IVSI
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-9353-115
- TCAS IIVSI/RA/TA
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-9353-123
- TCAS IVSI
Price Condition Status
$22,500.00 OH OUTRIGHT REQUEST LEAD TIME
622-9353-215
- TCAS IIVSI/RA/TA Ind.
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-9353-223
- TCAS Indicator/IVSI
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-9353-413
- TCAS Indicator
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-9353-425
- TCAS IND/VSI
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-9353-621
- TCAS Indicator
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-9353-623
- TCAS Indicator
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-9353-625
- TCAS Indicator
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
