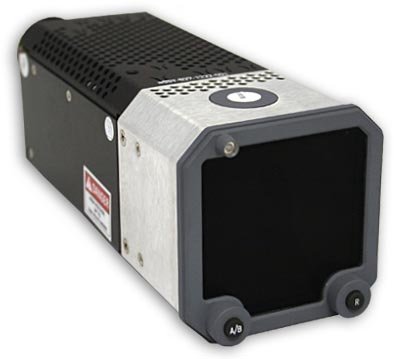

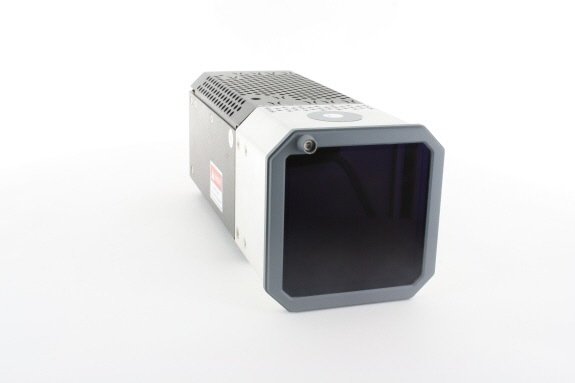

Model: TVI-920D

Collins Aerospace - TCAS Indicator
360
360
360
product 360 image
360
product image
Part Number :


TVI-920D
FEATURES
  • VSI/TA/RA Indicator is an active matrix liquid crystal display
  • Full color flat panel LCD display
  • Optimized for wide viewing angles and high contrast
  • Displays conventional vertical speed functions along with traffic information and resolution advisories
  • Accepts all common electric and pneumatic VSI data sources, denotes as standard
  • Has an air pressure sensor for direct connection to the aircraft static system
  • Standard 3" (3ATI) aircraft instrument case
  • An AC-powered version, TVI-920 is also available
SPECIFICATIONS
FAA TSO: C-8c, C113 Environmental: DO-160BD2F1CB/PKS/E1 XXXXXZEAEZZZK
EUROCAE: ED-14B Software: DO-178A Level 1
Package: 3 ATI-S (ARINC 408A Dimensions: 3.26"H x 3.26"W x 7.5"L
Weight: 3.2 lbs Cooling: Natural Convection
Temperature: -20 to 55°C Altitude: 50,000 ft
Power Requirements: 28 VDC* or 15W max Lighting: 0.5 VAC 400 Hz

* 115 VAC Version Available, TVI-920 (P/N: 622-9353-xxx)

Part NumberIndicator Description:
622-9728-015 TA/VSI, No Button, AT SW, Black, A429, DC
622-9728-025 TA/VSI, No Button, AT SW, Gray, A429, DC
622-9728-026  TA/VSI, No Button, AT SW, Gray, Manchester, DC
622-9728-115  TA/VSI, No Button, GA SW, Black, A429, DC
622-9728-116  TA/VSI, No Button, GA SW, Black, Manchester, DC
622-9728-125  TA/VSI, No Button, GA SW, Gray, A429, DC
622-9728-126  TA/VSI, No Button, GA SW, Gray, Manchester, DC
622-9728-215  TA/VSI, Mode & Range, AT SW, Black, A429, DC
622-9728-216  TA/VSI, Mode & Range, AT SW, Black, Manchester, DC
622-9728-225  TA/VSI, Mode & Range, AT SW, Gray, A429, DC
622-9728-226  TA/VSI, Mode & Range, AT SW, Gray, Manchester, DC
622-9728-315  TA/VSI, A/B & Range, GA SW, Black, A429, DC
622-9728-316  TA/VSI, A/B & Range, GA SW, Black, Manchester, DC
622-9728-325  TA/VSI, A/B & Range, GA SW, Gray, A429, DC
622-9728-326  TA/VSI, A/B & Range, GA SW, Gray, Manchester, DC
622-9728-415  TA/VSI, Mode & Range, GA SW, Black, A429, DC
622-9728-416  TA/VSI, Mode & Range, GA SW, Black, Manchester, DC
622-9728-425  TA/VSI, Mode & Range, GA SW, Gray, A429, DC
622-9728-426  TA/VSI, Mode & Range, GA SW, Gray, Manchester, DC



622-9728-001
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-002
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-011
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-012
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-015
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-021
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-022
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-025
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-026
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-031
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-032
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-111
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-112
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-113
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-114
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-115
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-116
- Vertical Speed Indicator
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-121
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-122
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-123
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ OH OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-124
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-125
- TCAS Indicator

NSN: 5826-01-558-9707

Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-126
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-201
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-202
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-211
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-212
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-213
- Vertical Speed/TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-214
- Vertical Speed/TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-215
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-216
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-221
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-222
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-223
- Vertical Speed/TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-224
- Vertical Speed/TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-225
- TCAS/VSI Indicator
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-226
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-231
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-232
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-311
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-312
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-313
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-314
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-315
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-316
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-321
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-322
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-323
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-324
- TCAS Indicator
Price Condition Delivery
$14,500.00 OH OUTRIGHT RFQ
$3,500.00 OH EXCHANGE RFQ

SEA Repair Capabilities: No

622-9728-325
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-326
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-411
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-412
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-413
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-414
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-415
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-416
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ AR OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-421
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-422
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-423
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-424
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9728-425
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-426
- TCAS Indicator
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-9728-623
- IVSI
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Southeast Aerospace exchanges are based on the return of an undamaged, economically repairable core unit with identical part number as the unit shipped to the customer. An "economically repairable" core is defined as one where the cost to repair/overhaul (or Repair Cap) does not exceed 80% of the original SV/OH exchange price billed. Should the Repair Cap exceed 80%, the customer will be billed the additional amount. In the event this amount exceeds the Outright Price for the unit, the customer would only be billed the difference between the Outright Price and SV/OH Exchange Price with the core returned as-is to the customer.

Here is an example of such a transaction:

$1000 Exchange Price charged to customer
$1000 x .8 = $800 Maximum Allowable core repair charge or Repair Cap

$2000 Cost to repair core unit
- $800 Less Core repair cap
---------
$1200 Additional billing amount.

2200.00 Total Cost of transaction

Please Note:
SEA offers exchange on new items as well. However, repair cap as indicated above is still based on SV/OH exchange price.
